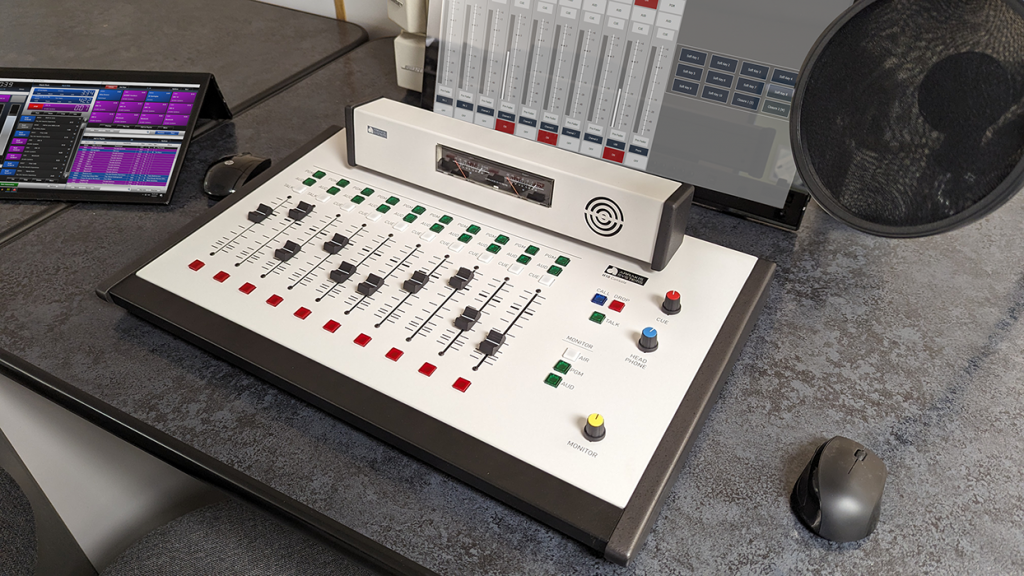

Analog Broadcast Console 10 Channel - 2 Stereo Outputs - Software Controllable
Posted on 07 November 2024
AVAILABLE NOW – The H-Series Controller software (not available with the H10-Lite) is included as a standard feature with the H-10 studio console mixer, empowering users to control the console remotely from anywhere in the world. With this software, you can easily turn channels on or off, monitor input levels, and utilize user presets to swiftly switch between different profiles, ensuring a seamless and efficient audio management experience
Microphone
▪ 2 – 4 Mics. 2 Built-in mic preamps. Add 2 more mic inputs with theARC-MIC-PRE.
▪ High performance mic channels, with XLR inputs.
▪ High performance mic preamps.
▪ 48 VDC phantom power
▪ Channel 1 features a Talk button to talk to a Studio monitor. (optional, $69)
▪ LED illuminated switches. (optional, $69)
Stereo Line
▪ 7 Inputs, giving you enough channels to connect all of your devices.
▪ Trim pot adjustable for each channel.
▪ Active balanced RJ-45 or unbalanced RCA (depending on model)
▪ 2 stereo output buses. Both balanced and unbalanced outputs.
▪ LED illuminated switches.
USB
▪ Play & Record in digital with Windows or Mac PC.
▪ USB sound card functionality to work with any software.
▪ Simple connect using standard USB cable.
▪ Play audio from your USB device directly onto your board.
▪ Record audio from your board using any 3rd party software.
▪ LED illuminated switches.
Phone
▪ Phone channel Mix- comes standard, allowing you to connect to a phone hybrid.
▪ Audio & Logic connections available to connect to hybrid.
▪ Listen off-line to a caller using the Cue button.
▪ Talkback button enables you to talk to the caller off-air.
▪ Mix minus feed to the caller is a mix of Pgm-Aud.
▪ LED illuminated switches.
Bluetooth
▪ The Bluetooth channel allows you to connect any Bluetooth device to channel 10 on the board.
▪ Connect your phone using the Bluetooth channel to take calls and put callers on-air.
▪ Connect your tablet wireless to the board, to play audio over the air.
▪ Quality comes standard with the latest in Bluetooth technology.
