Application Spotlight features RDL’s DD-BN22 Wall-Mounted Bi-Directional Mic/Line Dante Interface
Posted on 27 June 2023
RDL’s DD-BN22 Wall-Mounted Bi-Directional Mic/Line Dante Interface
In this week’s featured Application Spotlight, we shine the light on RDL’s DD-BN22 Wall-Mounted Bi-Directional Mic/Line Dante Interface and delve into its crucial role in system design for large venues like convention centers, resorts and hotels, entertainment venues, amphitheaters, and corporate conference and meeting rooms.
At the heart of this Dante wall plate product lies its professional-grade construction, boasting discrete mic preamplifiers that deliver studio-quality fidelity and exceptional noise performance. The unit comprises two female and two male metal XLR jacks elegantly housed within a durable stainless steel chassis. Notably, the DD-BN22 offers physical configuration without the need for any software adjustments.
Each XLR input is equipped with three front-panel switches, which can be set prior to installing the cover plate. These switches serve various functions, including enabling or disabling P48 phantom power, selecting the mic or line gain range, and setting the gain itself. On the rear panel, additional switches allow for individual XLR output configuration, offering flexibility between mic and line level settings.
The DD-BN22 finds its ideal application in scenarios where the settings are typically configured once to meet the system’s requirements. A prime example is a large convention center or hotel ballroom that employs airwalls to create smaller rooms within the larger space. In such cases, the DD-BN22’s inputs and outputs are commonly set to line level.

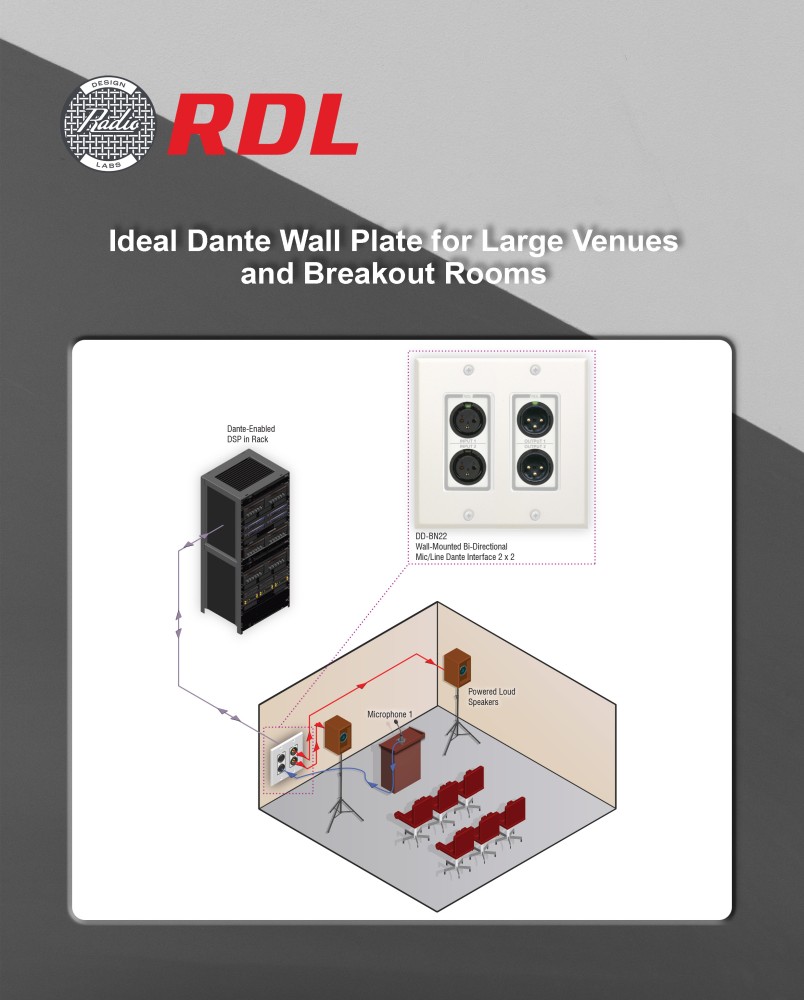

For instance, in a subdivided room section hosting a breakout meeting, a presenter may only require audio inputs for a microphone and computer audio. In this scenario, a compact 4-channel audio mixer would suffice, with its XLR line level outputs seamlessly connecting to the DD-BN22’s inputs. The audio signal is then converted and transmitted to the Dante network, which may include a Digital Signal Processor (DSP) for applying effects, tone adjustments, and level control. Finally, the processed signal can be routed to the existing installed amplifier and ceiling speakers within that specific room section or sent to the DD-BN22’s output jacks, feeding one or two portable active loudspeakers.
In summary, the RDL DD-BN22 Wall-Mounted Bi-Directional Mic/Line Dante Interface proves to be an indispensable tool in system designs for large venues, facilitating seamless audio integration, configuration flexibility, and high-quality sound reproduction for various applications.
Here are some key product features of the DD-BN22:
- Bi-Directional Interface: The DD-BN22 serves as a bi-directional interface, allowing seamless integration of microphones or line-level audio devices into a Dante audio network. It supports both microphone-level and line-level signals, providing versatility in various audio setups.
- Dante Audio Networking: With Dante support, the DD-BN22 enables easy and efficient audio networking over standard IP networks. It leverages the benefits of Dante’s low-latency, high-quality audio transmission, and provides compatibility with a wide range of Dante-enabled devices.
- Wall-Mounted Design: The DD-BN22 features a compact and convenient wall-mounted design, allowing for easy installation in fixed audio setups. This design ensures that the interface can be easily mounted near the audio sources, reducing cable clutter and improving accessibility.
- Versatile Input/Output Options: The interface offers a balanced mic/line input with selectable gain and 48V phantom power for condenser microphones. Additionally, it provides a balanced line output, allowing seamless integration with a variety of audio systems and devices.
- Front Panel Controls: The DD-BN22 includes intuitive front panel controls for easy configuration and monitoring. It features an input level control for adjusting the signal level, a network activity LED indicator, and an audio presence indicator to provide visual feedback and status updates.
- Power over Ethernet (PoE) Support: The DD-BN22 is designed to be powered via PoE, simplifying installation and eliminating the need for separate power supplies. This feature ensures efficient power management and reduces cable clutter, making it suitable for streamlined audio setups.
- Web-based Configuration: The interface offers web-based configuration, allowing users to access and control various settings via a standard web browser. This user-friendly interface enables customization of input/output parameters, device discovery, and network settings, ensuring flexibility and ease of use.
- Audio Quality and Performance: The DD-BN22 is built with high-quality components and circuitry to ensure excellent audio fidelity and performance. It supports a wide frequency response range, low noise floor, and high dynamic range, delivering clear and pristine audio reproduction.
- Compatibility and Integration: The DD-BN22 is fully compatible with other RDL and Dante-enabled devices, providing seamless integration within an existing audio ecosystem. It can be easily integrated into larger audio systems or used as a standalone interface in smaller setups.
- Robust and Reliable Construction: RDL is known for its durable and reliable products, and the DD-BN22 is no exception. It is built with a rugged metal enclosure, designed to withstand demanding audio environments, ensuring long-term durability and consistent performance.
