AVMATRIX Portable 10.1 inch 4-CH SDI&HDMI Video Switcher -PVS0403U

Posted on 20 July 2023

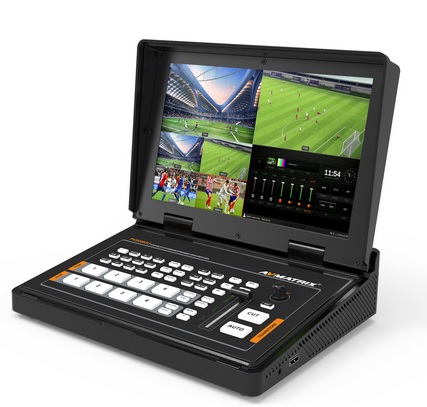

PVS0403U is a 4-channel HDMI & SDI multi-format video Switcher with a 10.1 inch FHD IPS LCD monitor.It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc. Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The unit supports stream performances and presentations on PC through the USB-C port.

Rich Interface
2xSDI and 2xHDMI inputs, 2xHDMI PGM output, 1xHDMI multiview out, 1xUSB type-C output.and the interface is hidden in the case, which can protect the interface from being damaged.

Scaled output & Multiview

Flexible to accept 4 input sources with different format and frame rate, with buid-in scalar, PGM output can be scaled to 1080i and 1080p. Multiview output make it easy to monitor 4 channels sources as well as PVW and PGM simultaneously on one display,

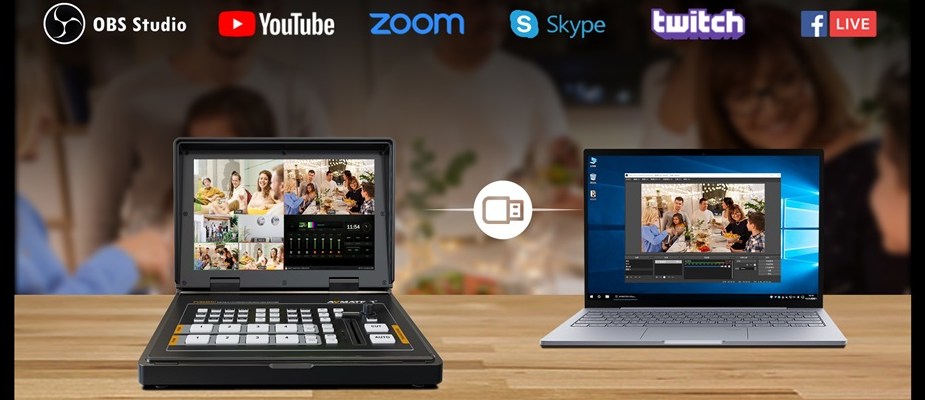

USB Capture for Streaming

Connect the switcher to a computer with windows 7/8/10. Mac OS via USB capture output, and use software like OBS, PotPlayer, VMix, etc, to realize live streaming in Youtube, Facebook, Twitter, etc. Platforms.

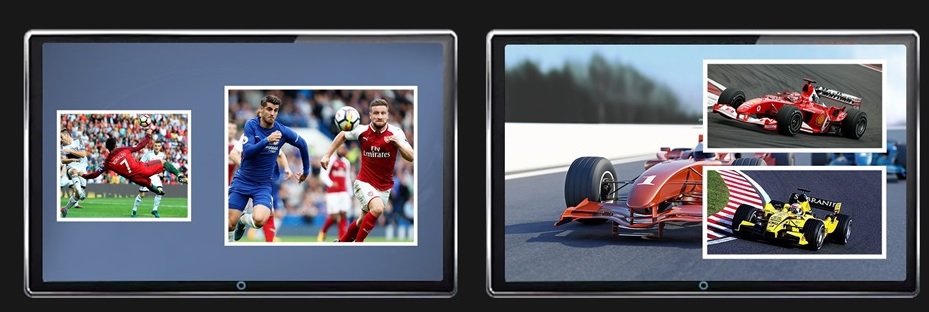

2PIP/POP

The switcher has 2 PIP function that it can overlay 2 sub-screen into the PGM out, and the size and position of sub-screen can be adjusted. Besides,user can use POP to have two same-size screens overlay into PGM out.

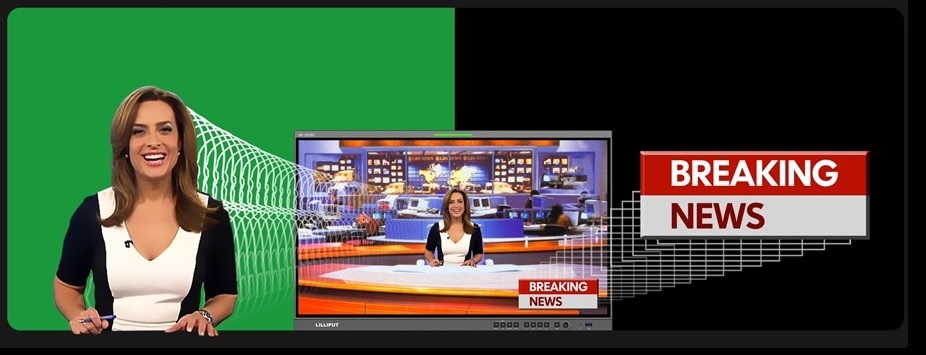

USK & DSk

The switcher supports chroma key and luma key, which is convenient for users to key off blue/green and black background colors for virtual studio or live event applications. besides, User can gain an exact color level by using the color picking , clip and gain key adjustment.



LOGO Overlay

User can add a logo from USB flash disk into PGM. The Logo’s size and position can be adjusted, and the logo image can be PNG, JPG, BMP, etc, and format.

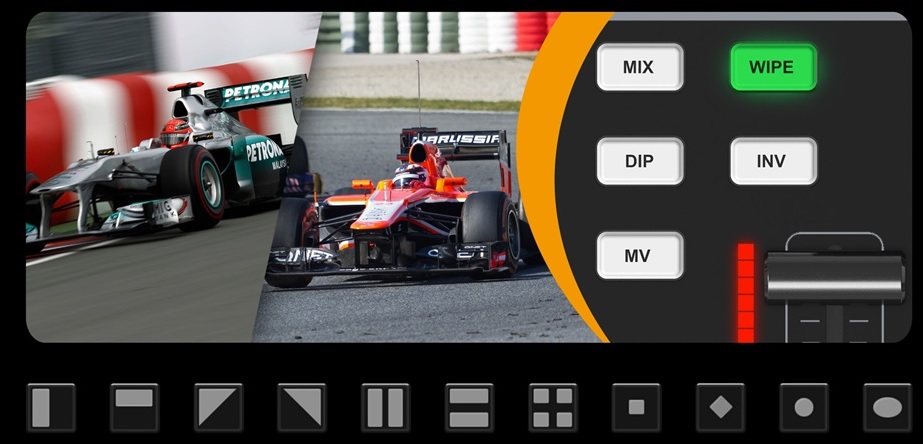

Transition Effects

There are WIPE (11×2 patterns), MIX and DIP transition effects available from the switcher. The transition effect works for switching via AUTO and T-Bar. User also can have transition without effect by switching via CUT.

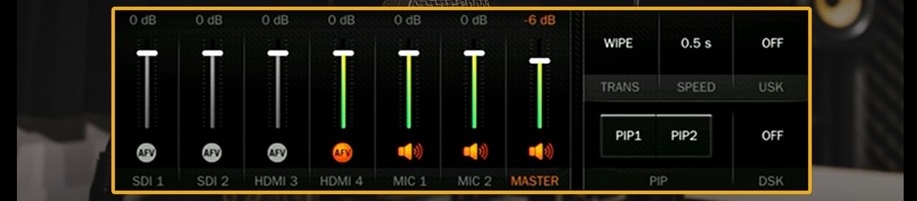

Audio MIXING / AFV

The Switcher can mix 2 HDMI and 2 SDI embedded audio and 2 external analog audios (Mic/Line-level) into the PGM out. User can turn on/off or adjust volume or audio delay for each audio independently. In addition, 2 HDMI and 2 SDI embedded audios can be set to AFV mode.

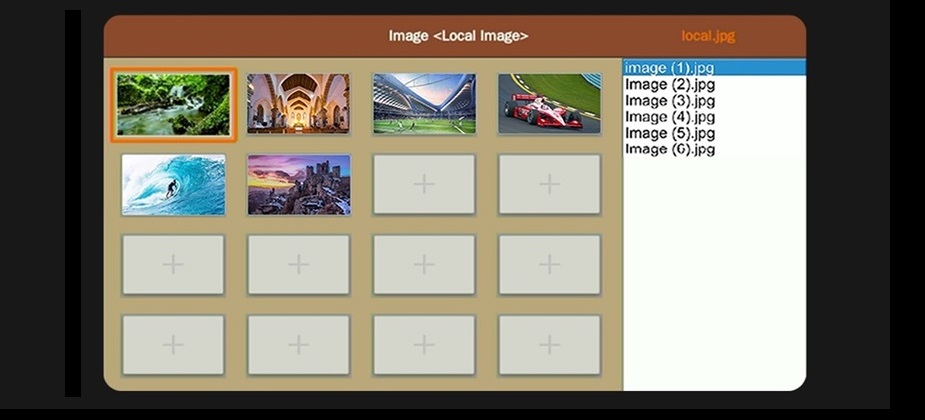

Media Management

The Video Switcher has a powerful built-in media management function with 39 preset patterns, User also can import image from USB flash disk, or Capture and store the screenshot image

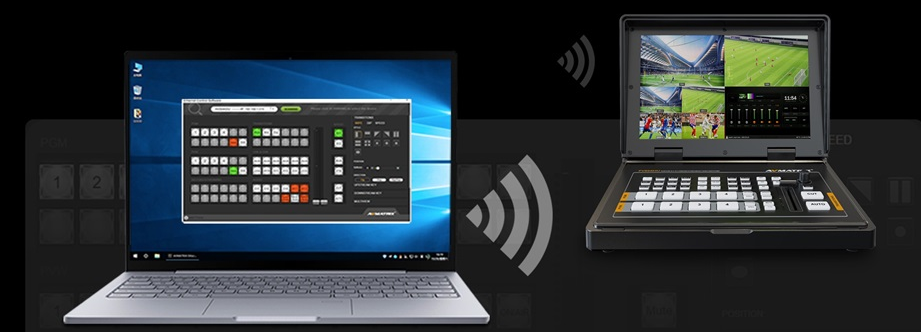

PC Control Software

A Free PC Control Software can be downloaded from website. User can remotely control all settings of the device through the control sofware, including transition effects, audio configuration, multi view settings and media management, etc.



Widespread Application

The video Switcher can be widely used in various field events, such as live sports, virtual studio, education, church, internet, concert, and so on.
