AEROMOS LED IP

SPECIFICATIONS

Full spectrum RGB + W LED controller

Web based configuration

IP controlled switching

There are 5 methods to work with MOS LED with IP:

• TCP COMMANDS / STRINGS
• TELOS AXIA X-NODE / LIVEWIRE DRIVER
• TELOS AXIA QOR/IQ/IQX
• DHD LOGIC
• SUB-D only

There are 2 methods to work with MOS LED with physical GPI contacts:

• 5VDC control voltage (10mA)
• Open and closed contact

12 and 24 volt standard RGBW led strip compatible

12 or 24 volt DC input

Close contact alarm input

DESCRIPTION

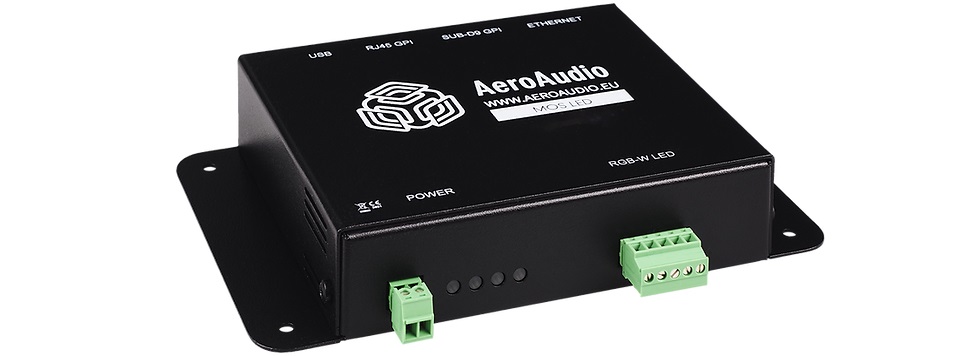

The MOS-LED-IP is not just your standard ledstrip controller. Designed specially for studio use it allows you to change the color of a RGB-W ledstrip automatically on fader up, incoming telephone call, alarm or any trigger you want.

​There are 5 methods to work with MOS LED with IP protocol:

• TCP COMMANDS / STRINGS
• TELOS AXIA X-NODE / LIVEWIRE DRIVER
• TELOS AXIA QOR/IQ/IQX
• DHD LOGIC
• SUB-D only

There are 2 methods to work with MOS LED with physical GPI contacts:

• 5VDC control voltage (10mA)
• Open and closed contact

You can use any RGB-W ledstrip (12-24Volt DC)

The power supply and the ledstrip are not included.

We have developed a test apllication which you can download here.

More info can be found in our manual.
