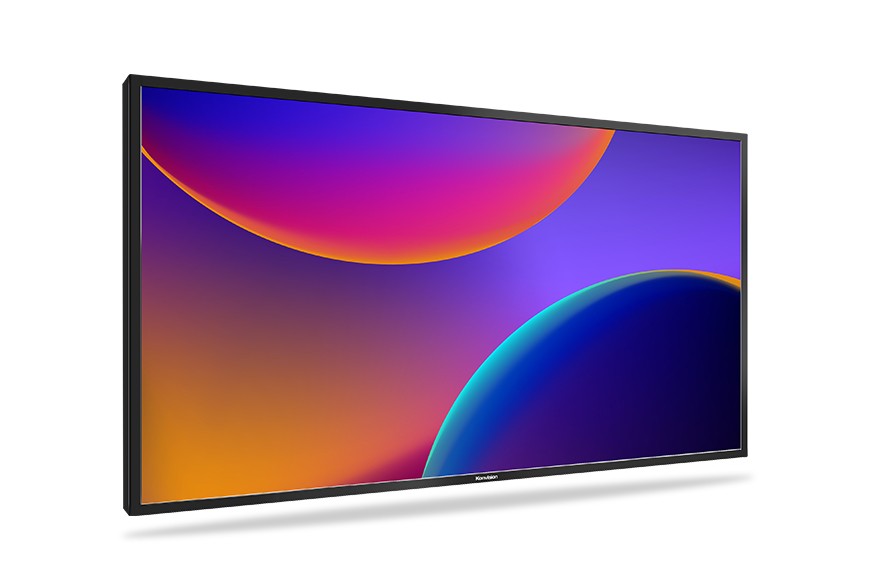

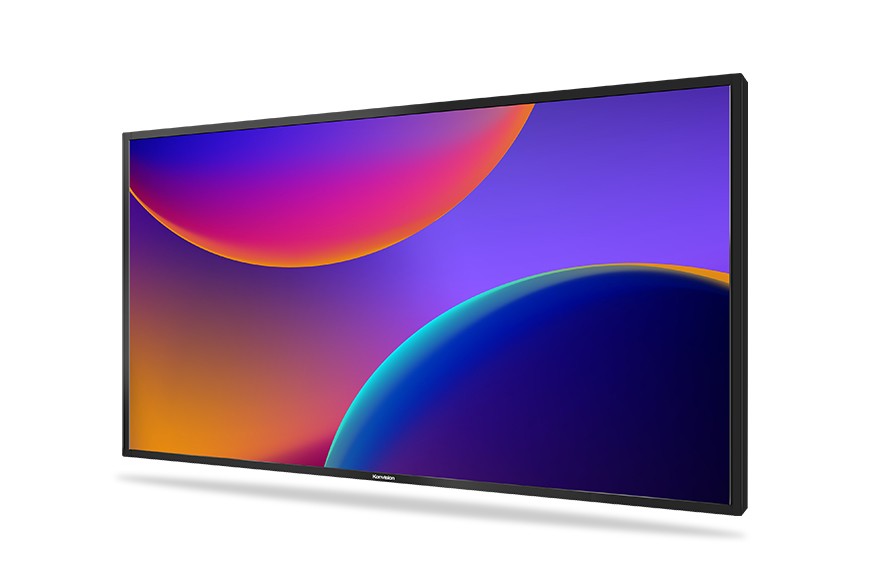

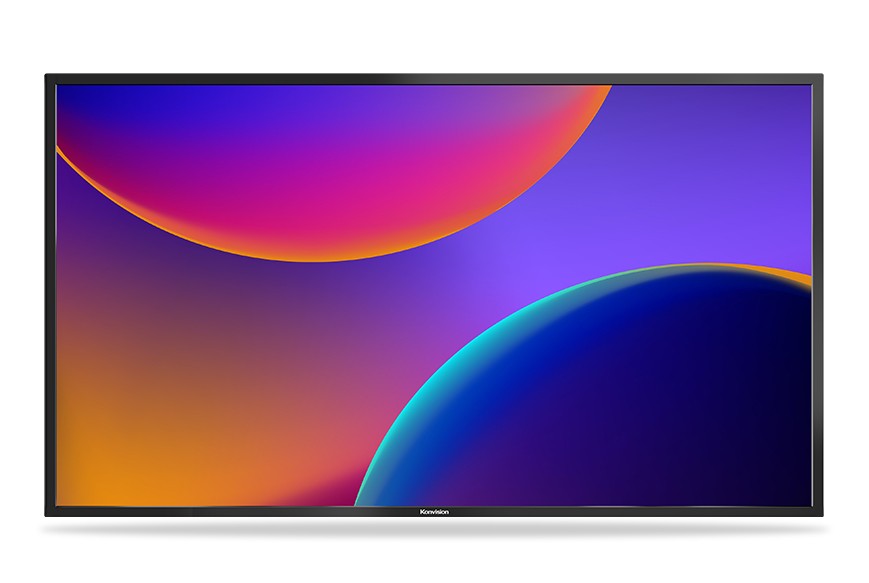

Konvision 55inch 4K HDR IP Wall Monitor KVM5550w

KVM-5550W
55″ Wall-Mount Broadcast Monitor

KVM-5550W has equipped with FHD resolution IPS LCD panel,high brightness and contrast ratio, 2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enables two signals be displayed on screen in the same time. Super slim design offers excellent solution for studio, broadcast, video wall as well as high-end video conference applications.

Product Descriptions

3D LUT Color Calibration

Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor’s also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

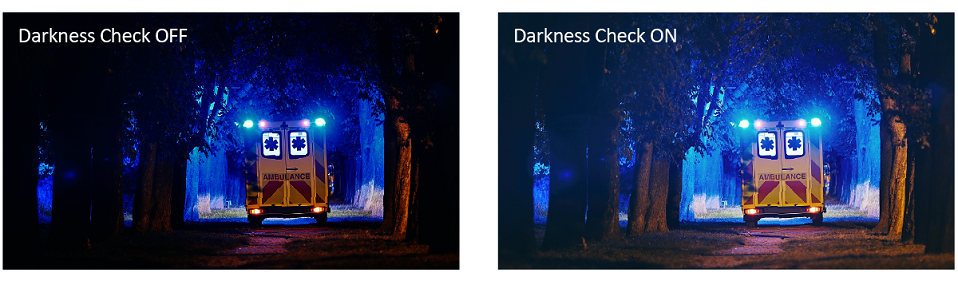

Darkness Check

Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double checking the shadow detail of the dark areas to avoid any missing information.

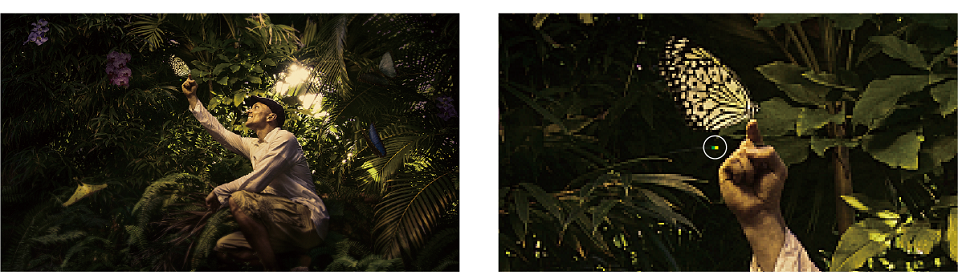

Part Zoom In

Part Zoom in function allows user Zoom In any part of the picture, to watch picture details more clearly, and assist for focus.

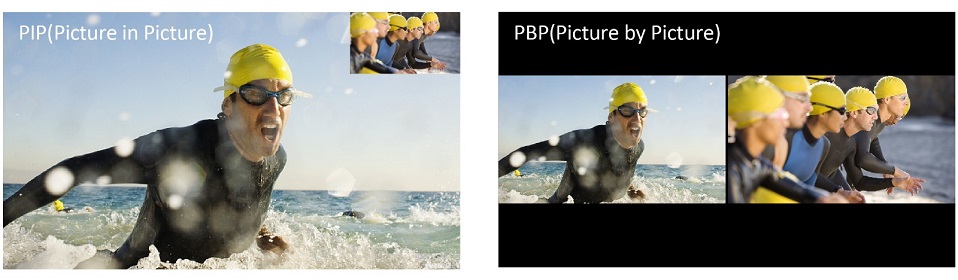

PIP & PBP

Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

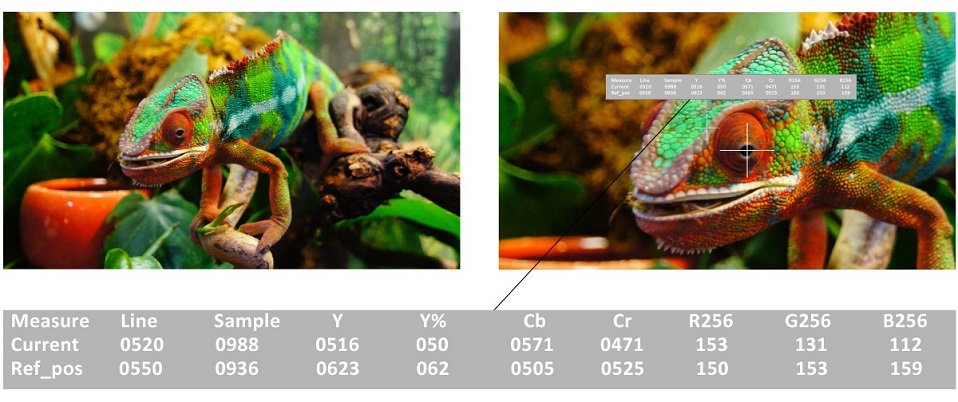

Pixel Measurement

Select any single pixel or block of pixels by using a movable cross-hair to obtain real time readouts of the Y&RGB values of the selected position. This function is to get real time Y&RGB measurement values of any point of the input signals and compare the values of of any two points.

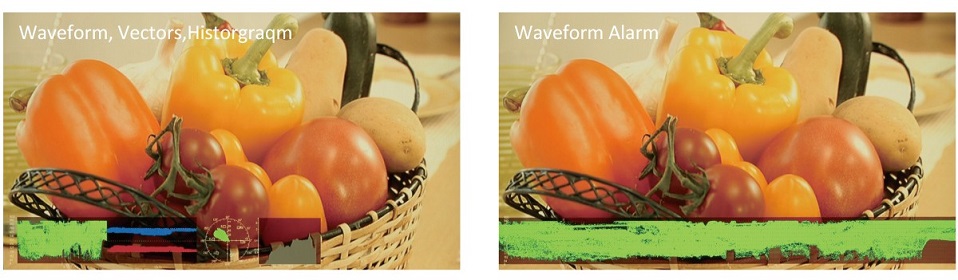

Waveform(Alarm),Vectors

SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time. When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).

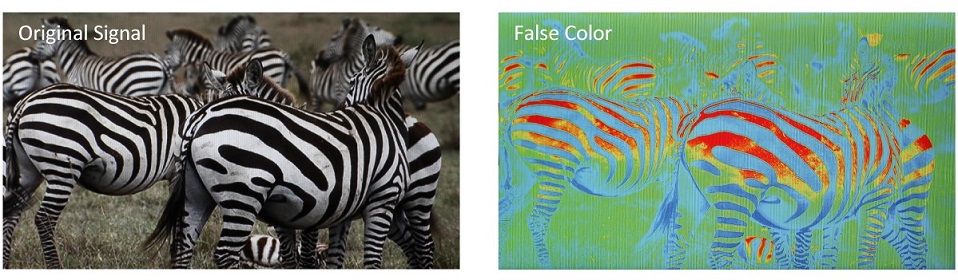

False Color

Check exposure of the image.Blue,cyan,green,yellow,orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest,enables an achievement of proper exposure without applying external test equipment.

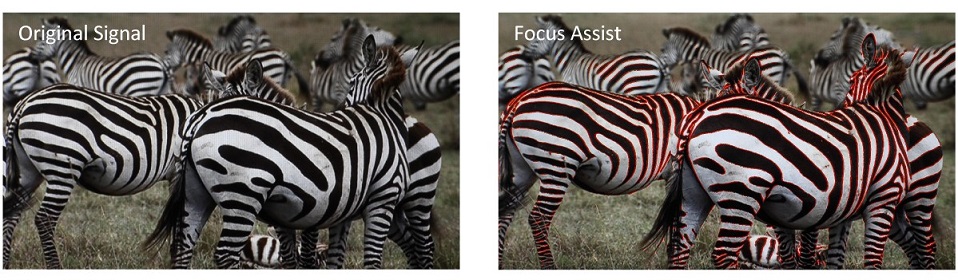

Focus Assist

Focus assist aids the camera operator in obtaining the sharpest possible picture,it will mark with red color where the sharp edges appear on the screen.

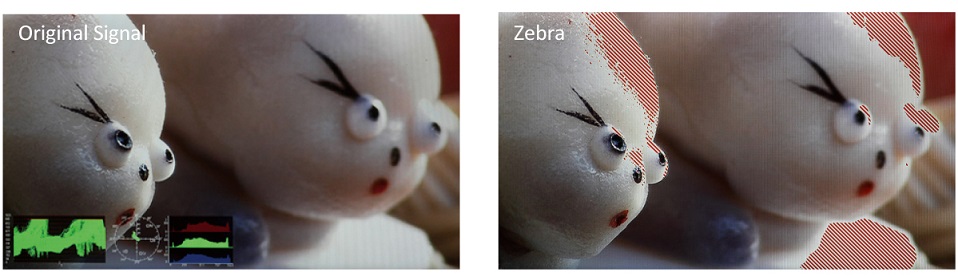

Zebra
Display the overexposed areas(too bright) of the image with zebra stripes,aids the camera operator to control the luminance,in order to avoid overexposure.This feature is very effective for proper exposure.

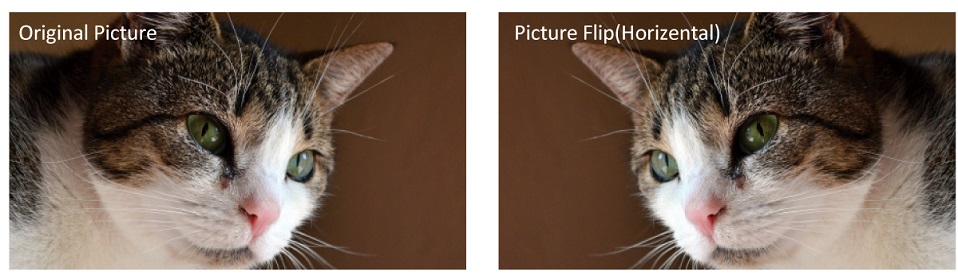

Picture Flip

Horizontal picture flip function allows negative image,is very useful in the studios/virtual studios,such as weather forecast,news and other programs,etc.

Highlights

• 55” 1920×1080 native resolution

• 3D LUT color calibration

• 2 x 2K/3G/HD-SDI in/out

• PIP/PBP, Darkness Check

• Audio Level Meter, Blue/Mono Only

• Audio Meter for SDl 1, SDl 2

• Dynamic UMD(TSL3.1/4.0/5.0)

• H/V Delay

• False Color, Zebra

• Time Code, Audio Meter

• Ethernet/GPI

• 12Bit video processing

• 3G-SDI 4:4:4 12Bit signals (SMPTE 425M A/B)

• Composite/Component in/out

• Waveform, Vector scope, Histogram

• Pixel Measurement, Picture Flip

• Picture Flip

• Focus Assist, Zoom

• Scan, Marker, Blue Only/Mono

• Power-off Memory
