IRT, 5x1 Analogue Audio Switcher
AAS-3021
P.O.A
* Ex GST. Check with us for Discounts and the latest Trade pricing!
- 5 x 1 Stereo on one Eurocard.
- May be cascaded to 20 x 1.
- Local or remote control options.
- Universal wire per crosspoint or binary coded remote control.
- Compatible with other 3000 series analogue & digital switchers.
- May be mounted in same frame as other IRT Eurocards. including VDA’s, ADA’s, detectors and processors.

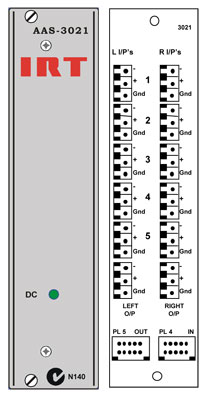

The AAS-3021 stereo audio switcher is part of a family of "smart" switchers in Eurocard format that may be linked and configured by the user to cover a wide range of switching and monitoring functions.
The AAS-3021 supersedes the AAS-3020 and provides all of its predecessor's functions together with added static protection and user configurable grounding wire per crosspoint remote control.
On board links allow several switchers to be joined for 10 x1, 15 x 1 or 20 x 1 operation.
The switcher may be slaved to operate in conjunction with similar switchers for analogue and digital video, audio and RS422 or similar control signals.
This makes the switchers ideally suited to situations where a mixture of analogue and digital signals is present.
The CPS-3050 local control switch panel kit converts the switcher for stand-alone operation.
The CPS-9001 provides a 5 button remote control in a panel the same size as the CPS-3050.
The CPS-1050 and 1052 1RU remote control panels allow formation of 10x1, 15x1 or 20x1 combinations.
All panels have tally LED's and switch label inserts. Multiple panels may be used with tally to each panel.
A complete video plus stereo audio switcher can be assembled from just two modules and can be accommodated in a single rack unit frame.
Download Product Datasheet
