RDL D to A Converter - 24/192 - AES/EBU and S/PDIF
HR-DAC1
$1,427.37
* Ex GST. Check with us for Discounts and the latest Trade pricing!
- Broadcast Quality Audio Digital to Analog Conversion
- Input: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
- Outputs: Balanced and Unbalanced Stereo Audio
- Adjustable Audio Output Gain Trim
- Dual-LED Audio Output Level VU Metering
- Operation Up to 24 bits, 192 kHz
- Exclusive Sure-Lok Auto-Recovery Sentinel
- Transformer Isolated AES/EBU Input
- Automatic Sample Rate Detection with Indicators
- Digital Signal Lock Indicator for Valid Inputs

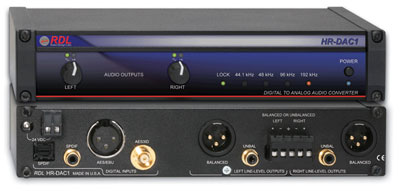

The HR-DAC1 is the ideal choice in installations requiring high quality analog audio from an AES/EBU, AES-3ID or S/PDIF digital audio source. The HR-DAC1 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The AES/EBU input is 110 ohm terminated; the S/PDIF coaxial and AES-3ID jacks are 75 ohm terminated. A front-panel LOCK LED indicates the presence of a valid digital audio source without any phase-lock or bit errors. Sample rates from 32 kHz to 192 kHz are supported with front-panel LEDs to indicate standard digital audio rates of 44.1 kHz, 48 kHz, 96 kHz and 192 kHz. Professional operating stability is achieved with RDL's proprietary Sure-Lok latch-up auto recovery.
The digital input is converted to stereo audio using high speed delta-sigma conversion, digital filtering and filtered wideband analog drivers. The high performance, low-noise converters are supplemented with digitally controlled analog gating to produce unparalleled performance. The LEFT and RIGHT output levels are individually adjustable using front-panel knobs. A dual-LED VU meter displays the output level of each channel to facilitate level adjustments. Balanced +4 dBu audio outputs are provided on a rear-panel detachable terminal block and on XLR jacks. Unbalanced -10 dBV outputs are provided on phono jacks.
The HR-DAC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
Download Product Datasheet
