Description

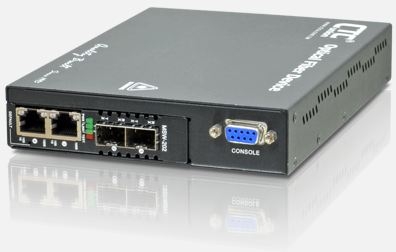

MSW-202 is a carrier class Ethernet Demarcation Device (EDD) with 2 x 10/100/1000Base-T Ethernet ports and 2 x 100/1000Base-X dual rate SFP fiber ports which enables EPL (Ethernet Private Line) & EVPL (Ethernet Virtual Private Line) services with advanced carrier Ethernet features per the Metro Ethernet Forum (MEF 9 and 14). By supporting link and service Ethernet OAM schemes, the MSW-202 also provides extensive fault detection and diagnostic capabilities to ensure that actual network use complies with pre-agreed service level agreements (SLAs).

Features

• Complies with MEF CE1.0

• Supports 8K MAC

• Spanning Tree 802.1D, 802.1s, 802.1w

• Supports 802.1Q / 256 active VLANs

• Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad) support for ISP application

• Various QoS capability (MAC/port/802.1p/Diffserv)

• Port-based rate limiting

• DHCP Snooping

• IGMP Snooping

• IPv6 support

• IEEE 802.3x and IEEE 802.1x support

• Jumbo frame for up to 9.6K

• Extensive Ethernet OAM support

• IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731

• SNMP v1/v2c/v3, Telnet, Web GUI

• IEEE 1588 V2 aware (Optional)
