Three INOmini 660 DAB+ Rackpack Receivers Bundle
RP660
P.O.A
* Ex GST. Check with us for Discounts and the latest Trade pricing!

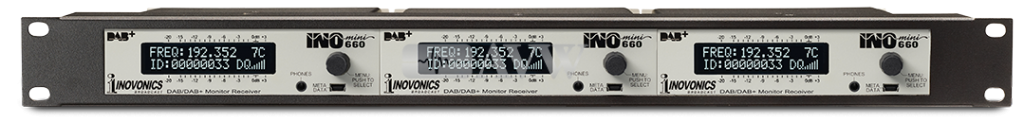

NEW BUNDLE: The new 660 DAB+ RackPack Bundle consists of three independent 660 DAB+
Monitor-Receivers preinstalled in a 1U 19" Rack Shelf. All at an
attractive List Price.

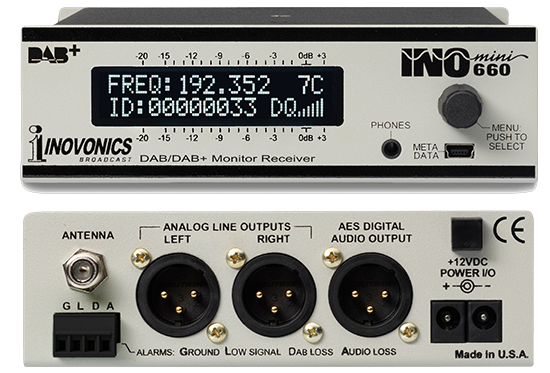

The 660 DAB/DAB+
Confidence Monitor provides off-air reception of all standard DAB & DAB+
broadcasts in a compact INOmini package.
The 660 tunes to all
of Band III, conforming to worldwide standards and meeting a particular need
for monitoring digital broadcasts off-air. The 660 has an easy set-up using the
LCD screen with jog-wheel navigation of the menu tree. The front-panel displays
the most-essential DAB and DAB+ PAD (Program Associated Data) information.
Alarms for Carrier
Loss, Digital Program Loss, and Audio Loss are provided on the LCD front-panel
and rear-panel tallies. The 660 has Analog L/R and AES-digital program line
outputs.
The compact
1/3-rack-size unit integrates with other Inovonics INOmini products, including
RDS encoders and decoders, AM/FM/HD-Radio confidence monitors with IP control
and streaming audio, and other economic problem-solvers for broadcasters.
Features
Reception of all standard DAB and DAB+ broadcasts
Easy setup using the LCD screen and jog-wheel navigation of the
receiver’s menu tree
Front-panel display of most-essential DAB and DAB+ PAD
(Program-Associated Data) information
Analog L/R and AES-digital program line outputs
Front-panel alarms with rear-panel tallies for Carrier Loss, Digital
Program Loss and Audio Loss
Firmware updates via USB port on front panel
Headphone jack
Specifications
Tuning Range
DAB Band III, Mode I (174.928MHz
- 239.200MHz); all EBU-sanctioned frequency allocations (Blocks 5-12, A-D)
plus Block 13 A-F
Receiver Sensitivity
10μV for error-free reception
Antenna Input
75-ohm (BNC)
Audio Codecs
MPEG-1 Audio Layer 2 (MP2); HE-AAC (AAC+)
Audio Response
±0.25dB, 20Hz-20kHz
Signal Parameters Displayed
FQ (FIC Quality), RF (RSSI), SNR, CNR
Metadata Displayed
Ensemble Label, Component List & ID, Service
List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode, Service
Mode, Protection Info, Current CU & Address, Country, Language, Time &
Date
Analog Audio Outputs
Balanced Analog L/R (XLR); level is menu-adjustable
between –15dBu and +15dBu. S/N: 100dbA @ 3kHz for Analog output.
Digital Audio Output
AES3 (XLR), 44.1kHz sampling rate; audio level
is menu-adjustable between –30dBFS and 0dBFS. S/N: >100dbA @ 3kHz for
AES Digital.
Headphone Jack
3.5mm TRS with menu-adjustable level
USB Connector
Allows firmware updates
Alarm Tallies
Individual open-collector NPN transistor outputs
for Low Signal, DAB Loss, Audio Loss; alarm thresholds, delays and logic polarity
Power Requirement
+12VDC at 220mA (2.1mm x 5.5mm coaxial; A
universal inline switchmode power supply is provided.
Mounting Options
An optional rack adapter accepts up to
three INOmini modules in a 1U rack space.
Size and Weight
1.6”H x 5.5”W x 5.5”D
4 lbs shipping weight
