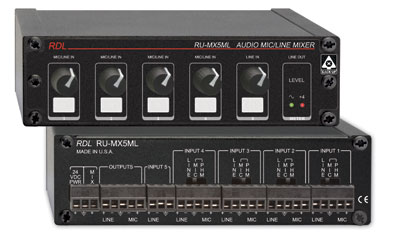

RDL 5 Input Mic/Line Mixer w/Phantom - Mic and Line Out
RU-MX5ML
$796.22
* Ex GST. Check with us for Discounts and the latest Trade pricing!
- Mic or Line Level Audio Mixer
- Five Channel Audio Mixer with Expansion Capability
- Inputs and Outputs on Detachable Terminal Blocks
- Switchable 24 V Phantom for Each Mic Input
- Balanced Mic and Line Outputs
- Expansion Bussing Capability
- Output Level dual-LED VU Metering
- Studio-Quality, Low-Noise Performance
The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level sources.
24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. Up to 3 RU-MX5ML mixers may be rack mounted in a single rack unit using an RDL RU-RA3HD rack adapter. The output section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is equipped with a front panel dual-LED VU meter that follows standard VU ballistics.
Download Product Datasheet
- Five Channel Audio Mixer with Expansion Capability
- Inputs and Outputs on Detachable Terminal Blocks
- Switchable 24 V Phantom for Each Mic Input
- Balanced Mic and Line Outputs
- Expansion Bussing Capability
- Output Level dual-LED VU Metering
- Studio-Quality, Low-Noise Performance
The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level sources.
24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. Up to 3 RU-MX5ML mixers may be rack mounted in a single rack unit using an RDL RU-RA3HD rack adapter. The output section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is equipped with a front panel dual-LED VU meter that follows standard VU ballistics.
Download Product Datasheet
