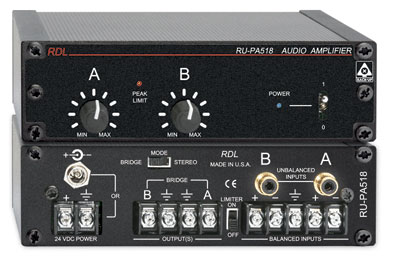

RDL Power Amplifier 5 W Stereo / 18 W Mono
RU-PA518
$710.40
* Ex GST. Check with us for Discounts and the latest Trade pricing!
- 9 W RMS per Channel Stereo into 4 Ohm
- 18 W RMS Mono into 8 Ohm
- Selectable Stereo or Bridged Mono
- Selectable Built-In Peak Limiter
- 1/3 Rack, High-Density Rack Mounting
- Front-Panel Control for 2 Inputs
The RU-PA518 features two modes of operation: stereo and bridged mono. Depending on the mode of operation, the RU-PA518 can deliver from 5 to more than 18 watts of RMS power at the output. In stereo mode, each of the two inputs feeds its respective left or right output. Front-panel level controls set the gain for both left and right channels. When the rear-panel switch is set to the bridge mode, the two inputs (A and B) are mixed together and fed to the output. In either the stereo or mono mode, an internal audio peak limiter may be turned on using a rear panel switch.
Download Product Datasheet
