RDL Intercom Amplifier
ST-IC1
$345.46
* Ex GST. Check with us for Discounts and the latest Trade pricing!
- Intercom Electronics
- Intercom with Push-to-Talk
- Mic or Speaker Input
- 8 Ohm or 45 Ohm Speakers
- Bidirectional Communication Option

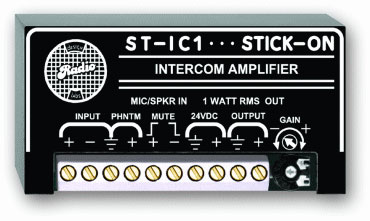

The ST-IC1 is the ideal choice where an intercom system is to be installed, or where an amplifier is needed to bring a mic level up to a 1 W speaker level with optional muting capability.
The ST-IC1 has one input, one output and two muting control terminals.
The input accepts a dynamic mic, a condenser mic (a phantom supply input terminal is provided to power condenser mics), an 8 Ohm speaker or a 45 Ohm speaker. The gain range of the module is sufficient to accommodate this wide variety of source levels.
The output is ground-referenced, and drives more than 1 watt RMS into an 8 Ohm load. The output circuit can be connected to any load impedance of 4 Ohm or greater.
Download Product Datasheet
- Intercom with Push-to-Talk
- Mic or Speaker Input
- 8 Ohm or 45 Ohm Speakers
- Bidirectional Communication Option
The ST-IC1 is the ideal choice where an intercom system is to be installed, or where an amplifier is needed to bring a mic level up to a 1 W speaker level with optional muting capability.
The ST-IC1 has one input, one output and two muting control terminals.
The input accepts a dynamic mic, a condenser mic (a phantom supply input terminal is provided to power condenser mics), an 8 Ohm speaker or a 45 Ohm speaker. The gain range of the module is sufficient to accommodate this wide variety of source levels.
The output is ground-referenced, and drives more than 1 watt RMS into an 8 Ohm load. The output circuit can be connected to any load impedance of 4 Ohm or greater.
Download Product Datasheet
