• Unbalanced Audio Outputs from a Balanced Line
• Balanced to Unbalanced Conversion
• Mono Input to Stereo Output
• +4 dBu Input Level to -10 dBV Output Level
• Studio Quality Transformer Isolation
• Passive Converter with Output Jacks

The TX-A2 is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line level mono source and consumer equipment unbalanced inputs.

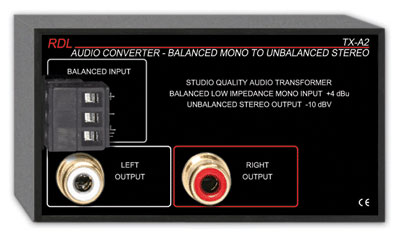

The TX-A2 is a complete unbalanced line level audio output module. The front panel provides a detachable terminal block for connection of a balanced +4 dBu audio source. The input signal is coupled to two front panel gold plated RCA jacks through a studio quality isolation transformer. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Both output jacks may be used to feed two mono equipment inputs or one stereo input. A single output jack may be used for mono. Shielding is provided by the TX-A2's heavy duty aluminum enclosure.

Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.

Download Product Datasheet
