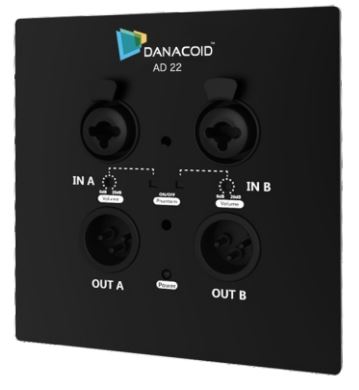

Danacoid DynePro Wall Plate - 2 Channel, POE +48V Power Supply
DA-AD22
$1,060.00
* Ex GST. Check with us for Discounts and the latest Trade pricing!
Danacoid - DynePro Series DANTE Wall Plate
Cost effective DANTE Interfaces
Features:
- 2CH balanced XLR microphone/line input;
- 2CH balanced XLR line output;
- POE Powered
- Three input gain levels to support Line level In, Phantom power and Dynamic microphone;
- +48V phantom power for Microphones
Parameters:
- Analog input channels x2
- THD+N <0.002% @ 4dBu
- Analog output channel 2
- Background noise -97dBu
- Dante type Ultimo 2
- Input impedance 20 kΩ
- Analog Max. gain 20dB
- Output impedance 100Ω
- Frequency response ±0.2dB（20~20kHz）
- Channel isolation 100dB @ 1kHz
- Max. level +8dBu，balanced
- Power supply PoE
- Size （mm） W110×H110×D50 mm
Datasheet on more information can be found here:
