Terracom Terra-DS: Wall Mount SIP-Intercom Station

TERRA-DS1

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

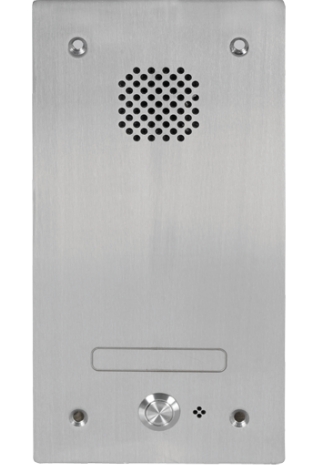

Terra-DS: Wall Mount SIP-Intercom Station

TERRA-DS is a wall mount SIP / IP INTERCOM station with up to 4 buttons. It is the indispensable device for INTERCOM solutions. ATEIS proposes 4 different TERRA-DS, going from 1 to 4 buttons.

  • TERRA-DS1 = one-key button
  • TERRA-DS2 = two-key buttons
  • TERRA-DS3 = three-key buttons
  • TERRA-DS4 = four-key buttons

Features:
  • Built in condenser microphone.
  • Built in 2 W loudspeaker.
  • G.711, G.722, MP3 audio encoding/decoding
  • 1 to 4 buttons on the front panel.
  • SPI for keypad extension.
  • 2 relay outputs.
  • Ethernet interface including POE (Power Over Ethernet).
  • 24 VDC power supply (if no POE available).
  • Power consumption: 2 W.
  • Dimensions: length 35, height 220, width 100 mm.
  • Weight: 808 g

Refer to the wider TERRA range for audio encoders, audio decoders, audio over IP and IP audio systems

View the Terra-DS Datasheet here.
