AV Matrix SDI Streaming Encoder

SE1117

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

User Manual Related Product

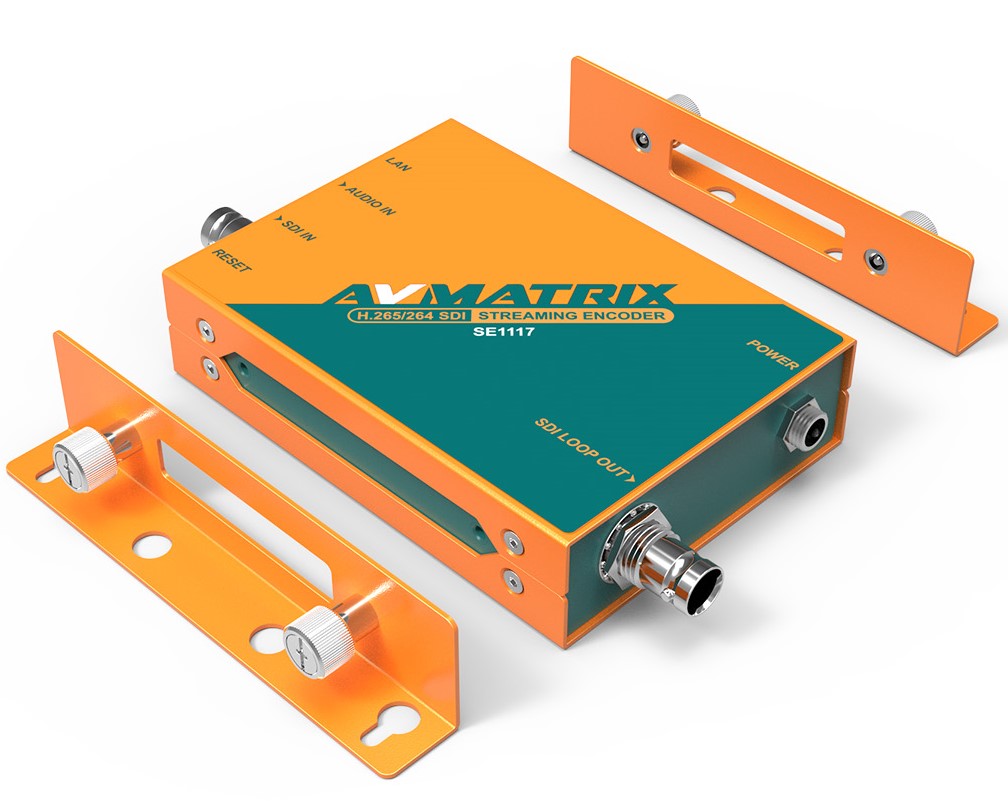

The AVMatrix SE1117 is an SDI Streaming Encoder with 1x SDI input, 1x SDI loop out, 1x Analog audio input with support for H.265/ H.264 stream encode protocol up to 1080p60hz.

The AV Matrix SE1117 is a HD audio and video encoder which can encode and compress HDMI video and audio source into IP stream, and then transmit it to streaming media server via network IP address to live broadcast on platforms like Facebook, YouTube, Ustream, Twitch, Wowza etc.


KEY FEATURES AVMATRIX SDI Streaming Encoder

  • 1×SDI input, 1×SDI loop out, 1×Analog audio input
  • Supports H.265/ H.264 stream encode protocol, up to 1080p60hz
  • Dual-stream (main stream and sub stream)
  • RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
  • Video and audio streaming or single audio streaming
  • Image and text overlay
  • Mirror image & upside-down image
  • Live stream with no need for connecting a computer

SPECIFICATIONS AVMATRIX SDI Streaming Encoder

ModelSE1117
CONNECTIONS
VideoInput: SDI Type A ×1; Loop Out: SDI Type A ×1
Analog Audio3.5mm line in ×1
NetworkRJ-45×1(100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video CodingH.265/ H.264
Video Bitrate16Kbps ~ 12MKbps
Audio CodingACC/ MP3/ MP2/ G711
Audio Bitrate24Kbps ~ 320Kbps
Encoding Resolution1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360
Encoding Frame Rate5-60fps
SYSTEMS
Network ProtocolsHTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
Configuration ManagementWeb configuration, Remote upgrade
OTHERS
Consumption5W
TemperatureWorking temp: -10℃~60℃, Storage temp: -20℃~70℃
Dimension (LWD)104×75.5×24.5mm
WeightNet weight: 310g, Gross weight: 690g
Accessories12V 2A power supply; Mounting bracket for optional


Allowing you to output to a streaming server via an IP address, the AVMATRIX H.264/H.265 SDI Streaming Encoder lets you efficiently live stream without connecting to a computer. Featuring an SDI input and loop output as well as an independent 3.5mm audio input, it allows you to encode up to 1080p60 video with embedded audio into an IP stream, or choose to encode audio only, and send out either signal over an Ethernet interface while monitoring the input video source locally.
