Micro 4 Channel HDMI Live Streaming Video Switcher

HVS0402U

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!


HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design. It supports various functions including video switching, audio mixing, PGM/ Multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP media library, pattern and color generate. Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment

  • 4 channel auto-detected HDMI inputs
  • 1×HDMI PGM output,1×HDMI Multiview out, 1×USB type-C output
  • AUX output configurable and assignable
  • USB-C for capturing and streaming on PC
  • Clearly visible Multiview & status page
  • Upstream key: Luma key, Chroma key, PIP×2/ POP
  • Downstream key and LOGO overlay
  • T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
  • Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
  • Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • FTB/ MUTE/ STILL/ GPIO for tally
  • Customer configuration import and export

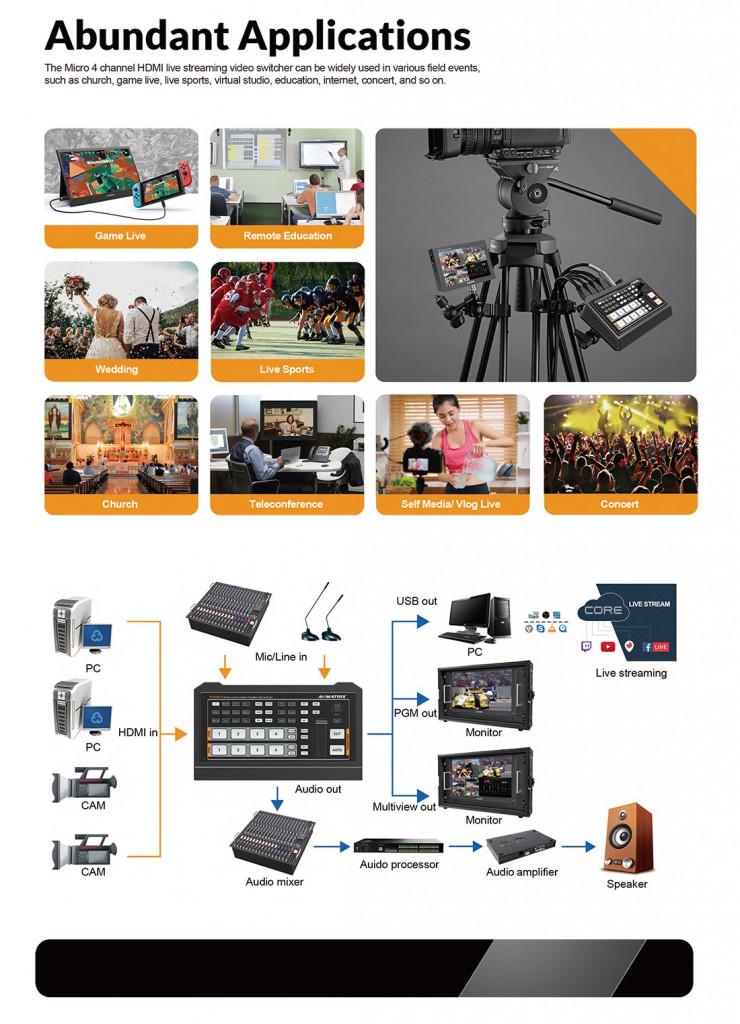

MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER
