Configurable Presentation Matrix Switchers
Posted on 23 August 2024

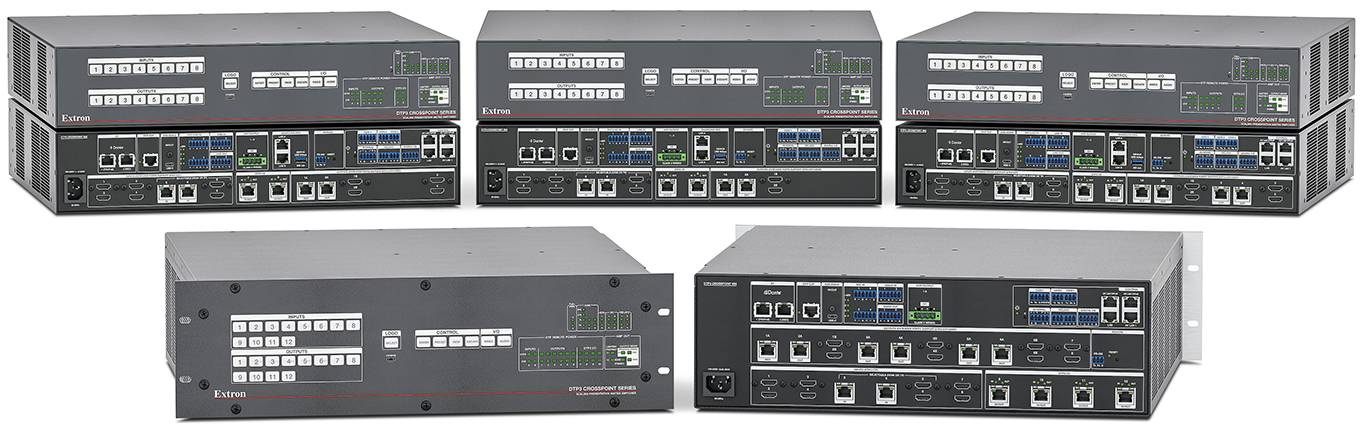

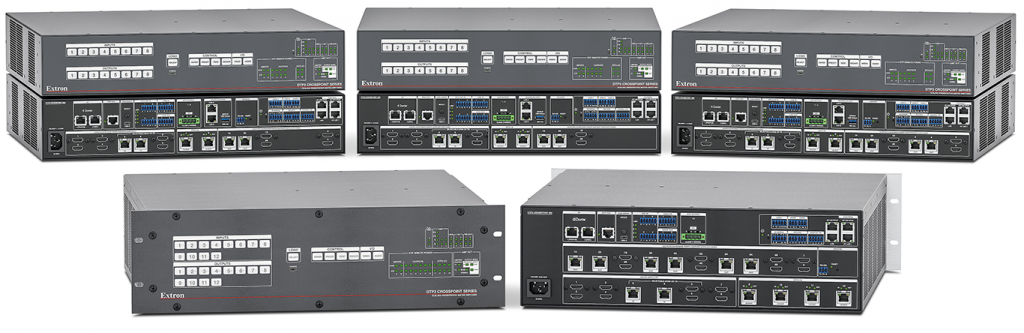

We are pleased to introduce the DTP3 CrossPoint Series of configurable presentation matrix switchers. These powerful products deliver high-performance matrix switching with HDMI and DTP3 inputs and outputs, audio DSP with AEC, Dante®, a power amplifier, and a control processor, all in a single box. Industry-leading DTP3 CrossPoint® matrix switchers feature reversible DTP3 I/O ports, enabling one unit to support multiple matrix configurations to suit the unique needs of each project.
| DTP3 CrossPoint 4K/60 Presentation Matrix Switchers are available in four sizes, providing flexible input/output configurations to match a wide range of system applications: | |
| DTP3 CrossPoint 884 | Configurable from 8×12 to 12×8 |
| DTP3 CrossPoint 662 | Configurable from 6×8 to 8×6 |
| DTP3 CrossPoint 642 | Configurable from 6×6 to 8×4 |
| DTP3 CrossPoint 622 | Configurable from 6×4 to 8×2 |
| With a maximum data rate of 18 Gbps, these feature-rich matrix switchers support video resolutions up to 4K/60 at 4:4:4 color sampling and are HDCP 2.3 compliant. Extron-patented Vector™ 4K technology facilitates state-of-the-art video scaling on all outputs. Other professional capabilities include seamless switching, logo keying, signal extension up to 330 feet (100 meters) over shielded CAT 6A cable, and more. Providing complete system integration for AV systems in a 2U or 3U full rack width metal enclosure, the DTP3 CrossPoint Series is ideal for professional environments with multiple source and display devices and that require sound reinforcement and system control. | |
Key Features
- All-in-one 4K switchers with selectable matrix configurations, scaling, audio DSP plus AEC, audio power amplifier, and control processing
- Integrated DTP3 inputs and outputs support transmission of uncompressed video, audio, and control up to 330′ (100 m) over a shielded CAT 6A cable
- Dante audio networking with Dante Domain Manager and AES67 support provides a wide range of expansion capabilities
- USB Audio Interface
- Available energy-efficient Class D amplifier with selectable output power modes:
- 100 watts stereo into 4 ohms or 8 ohms
- 200 watts mono into 8 ohms
- 200 watts mono into 70 V or 100 V
- Available with integrated IPCP Pro 360MQ xi control processor
- Available with built-in ShareLink® Pro presentation system on select models
- Compatible with DTP3 and DTP®-enabled products, plus XTP II CrossPoint matrix switchers
- Remote powering of DTP3 and DTP transmitters and receivers
The DTP3 CrossPoint 884 will be available in September 2024.
The other DTP3 CrossPoint models will be available in January 2025.
| DTP3 CrossPoint Series | ||
| MODEL | VERSION DESCRIPTION | PART # |
| DTP3 CrossPoint 884 | Standard Model | 60-1696-01 |
| DTP3 CrossPoint 884 IPCP A | Control Processor and Amplifier | 60-1696-12 |
| DTP3 CrossPoint 884 IPCP A with LinkLicense | Control Processor and Amplifier, LL UI Upgrade | 60-1696-12A |
| DTP3 CrossPoint 662 | Standard Model | 60-1694-01 |
| DTP3 CrossPoint 662 IPCP A | Control Processor and Amplifier | 60-1694-12 |
| DTP3 CrossPoint 662 IPCP A LL | Control Processor and Amplifier, LL UI Upgrade | 60-1694-12A |
| DTP3 CrossPoint 662 IPCP A SL | Control Processor, Amplifier and ShareLink | 60-1694-13 |
| DTP3 CrossPoint 662 IPCP A SL LL | Control Processor, Amplifier, ShareLink, LL UI Upg | 60-1694-13A |
| DTP3 CrossPoint 642 | Standard Model | 60-1661-01 |
| DTP3 CrossPoint 642 IPCP A | Control Processor and Amplifier | 60-1661-12 |
| DTP3 CrossPoint 642 IPCP A LL | Control Processor and Amplifier, LL UI Upgrade | 60-1661-12A |
| DTP3 CrossPoint 642 IPCP A SL | Control Processor, Amplifier and ShareLink | 60-1661-13 |
| DTP3 CrossPoint 642 IPCP A SL LL | Control Processor, Amp, ShareLink, LL UI Upgrade | 60-1661-13A |
| DTP3 CrossPoint 622 | Standard Model | 60-1570-01 |
| DTP3 CrossPoint 622 IPCP A | Control Processor and Amplifier | 60-1570-12 |
| DTP3 CrossPoint 622 IPCP A LL | Control Processor and Amplifier, LL UI Upgrade | 60-1570-12A |
| DTP3 CrossPoint 622 IPCP A SL | Control Processor, Amplifier and ShareLink | 60-1570-13 |
| DTP3 CrossPoint 622 IPCP A SL LL | Control Processor, Amplifier, ShareLink, LL UI Upg | 60-1570-13A |
