How do you send HDMI signals over fiber optic cable ?
Posted on 12 June 2024
FOXBOX HDMI | Extron
Overview
The Extron FOXBOX HDMI is a fibre optic transmitter and receiver set designed for the long-distance transmission of HDMI video, audio, and RS-232 control signals over fiber optic cables. This solution is aimed at ensuring reliable and high-quality performance, making it suitable for both simple point-to-point applications and more complex, enterprise-wide distribution systems using FOX Series matrix switchers.
Key Features
Extended Range: Capable of transmitting HDMI video, stereo audio, and RS-232 control signals up to 30 kilometres over fibre optic cables.
All-Digital Technology: Ensures pixel-for-pixel performance with signals up to 1920×1200 resolution, including HDTV 1080p/60.
HDCP Compliance: Key Minder® technology continuously verifies HDCP compliance for reliable and quick switching.
EDID Management: EDID Minder® automatically manages EDID communication between connected devices.
Models: Available in both multimode and single-mode versions.
Compact Design: The enclosures are designed to mount discreetly behind flat-panel displays.
Problem Being Solved
The FOXBOX HDMI addresses the challenge of transmitting high-definition HDMI signals over long distances while maintaining signal integrity and performance. Traditional copper cables are limited in range and susceptible to signal degradation, especially over longer distances. By using fibre optic technology, the FOXBOX HDMI provides a solution for transmitting high-quality HDMI signals over distances up to 30 kilometres, ensuring reliable and high-performance connectivity for professional AV systems.
Use Cases

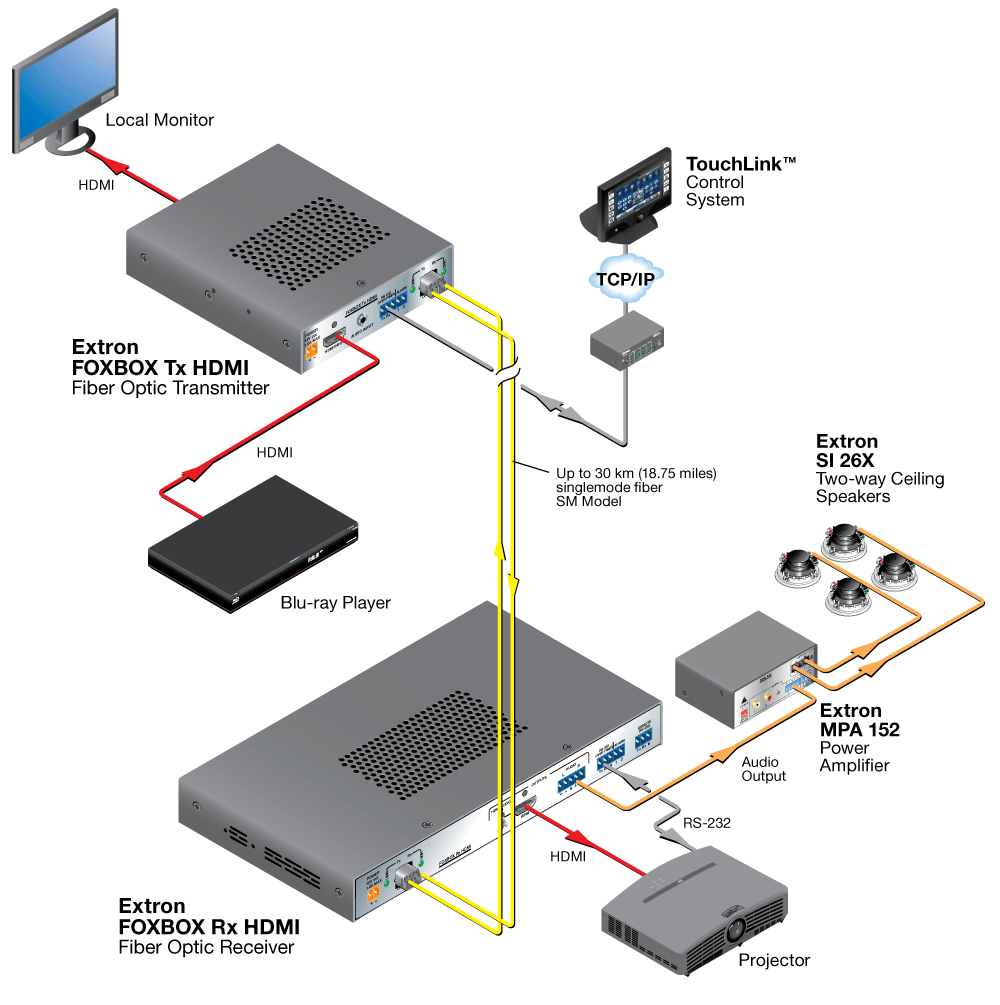

Corporate Environments: For large-scale presentations and digital signage where displays are located far from the source.
Educational Institutions: Enabling high-definition video distribution across campus buildings.
Healthcare Facilities: For distributing high-quality video to various monitoring stations without signal loss.
Entertainment Venues: Ensuring flawless video transmission in large venues like stadiums and theatres.
Key Features
> Extends HDMI video, stereo audio, and RS‑232 control signals up to 30 km over fiber optic cable
> All-digital technology provides pixel-for-pixel performance with signals up to 1920×1200, including HDTV 1080p/60
> HDCP compliant
> Key Minder® continuously verifies HDCP compliance for quick, reliable switching
> EDID Minder® automatically manages EDID communication between connected devices
> Multimode and singlemode models available
> Compact enclosures mount discreetly behind flat-panel displays
