Lilliput HT5S 5.5" Ultrahigh 2000 Brightness Touchscreen On-Camera Monitor
Posted on 11 April 2023

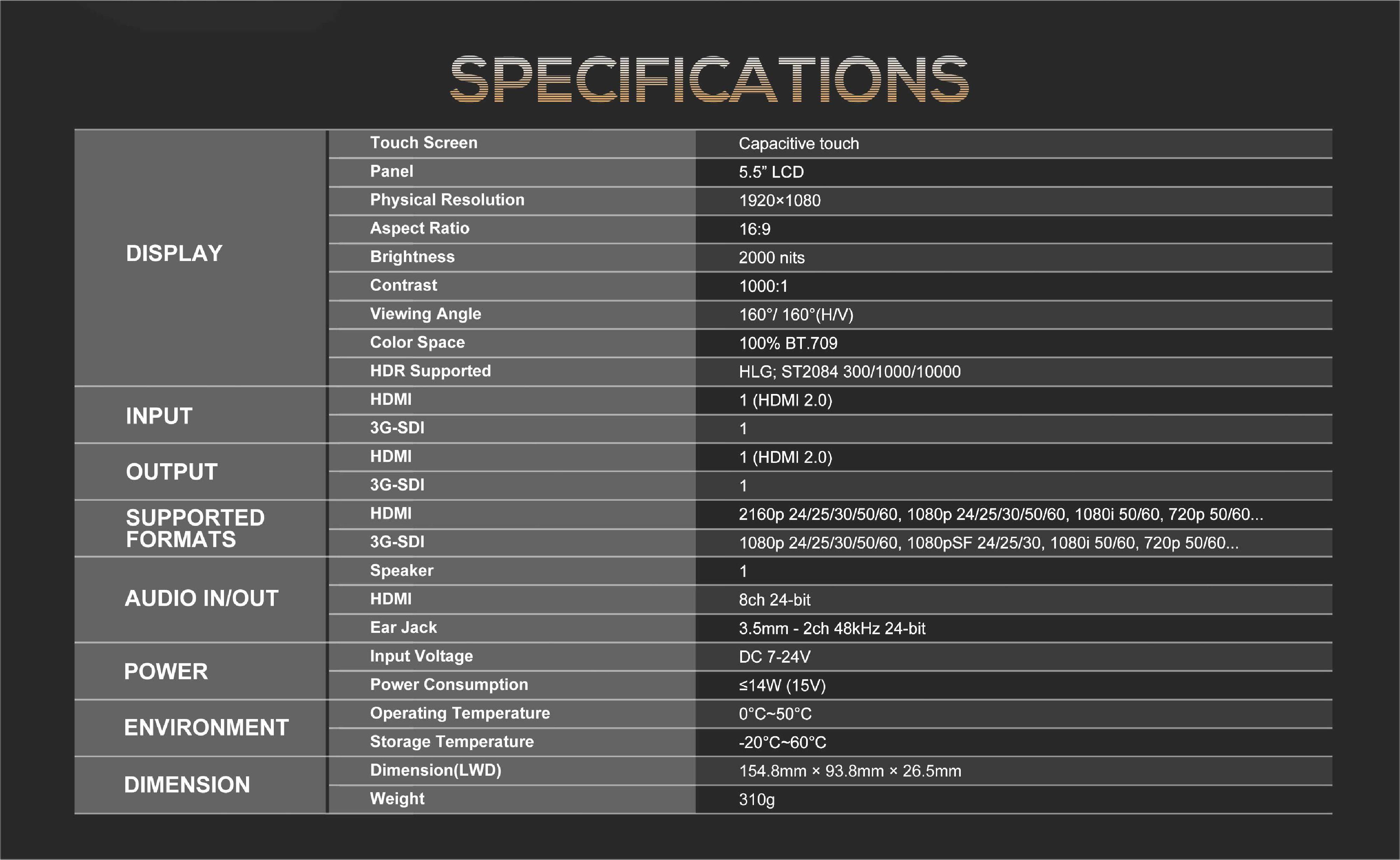

The Lilliput HT5S is an exceptional 5.5″ on-camera monitor that allows you to view ultra-high definition 4K video with ease. This monitor features an ultrabright 2000 cd/m² display with a 1000:1 contrast ratio, making it perfect for outdoor use. With both 3G-SDI and HDMI inputs and outputs, this monitor can support up to UHD 4K60 video via HDMI and up to 1080p60 via 3G-SDI. You can even load 3D LUTs via the USB port and use HDR imaging input to display a wide dynamic range such as HLG or ST2084-300/1000/10000.

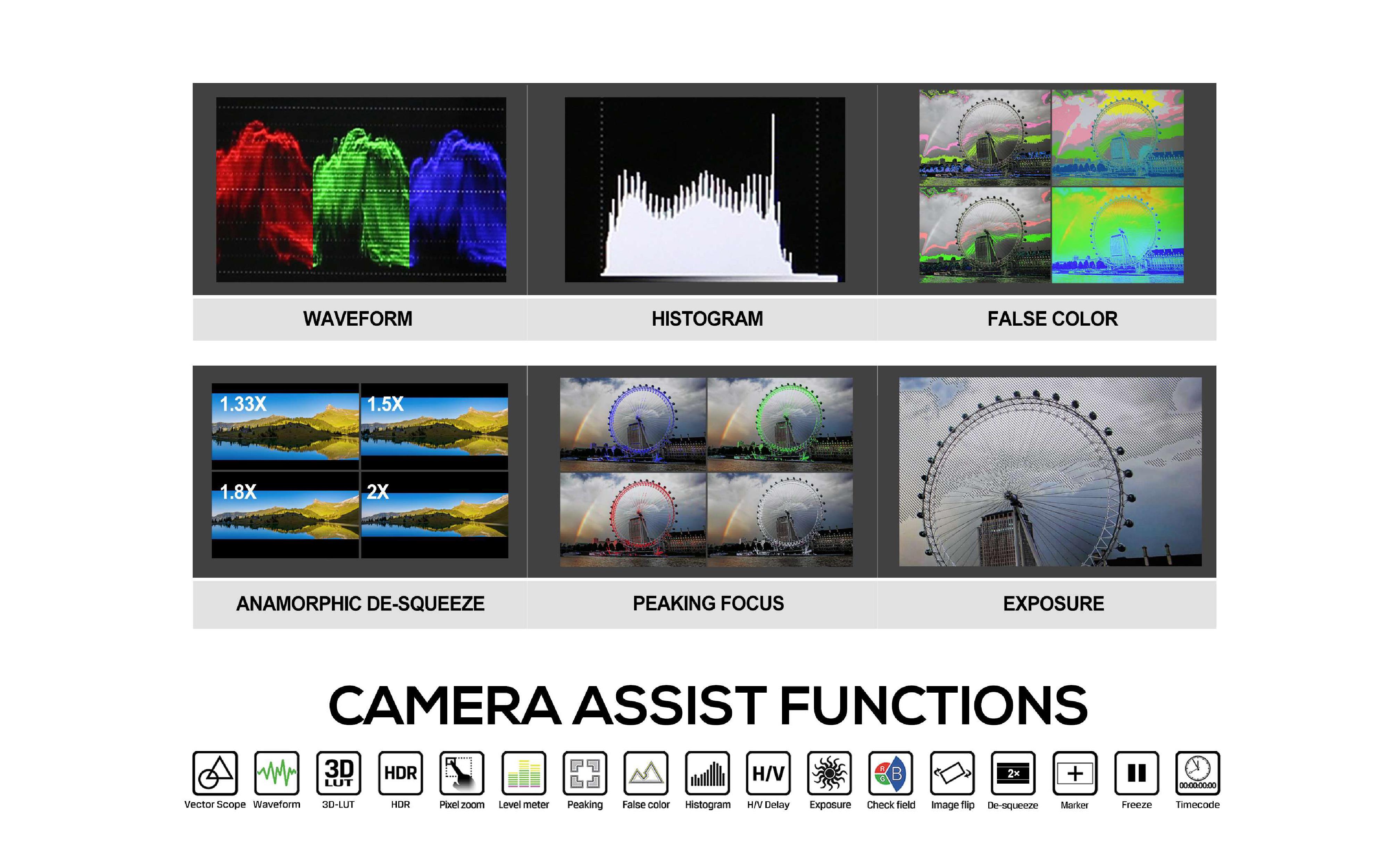

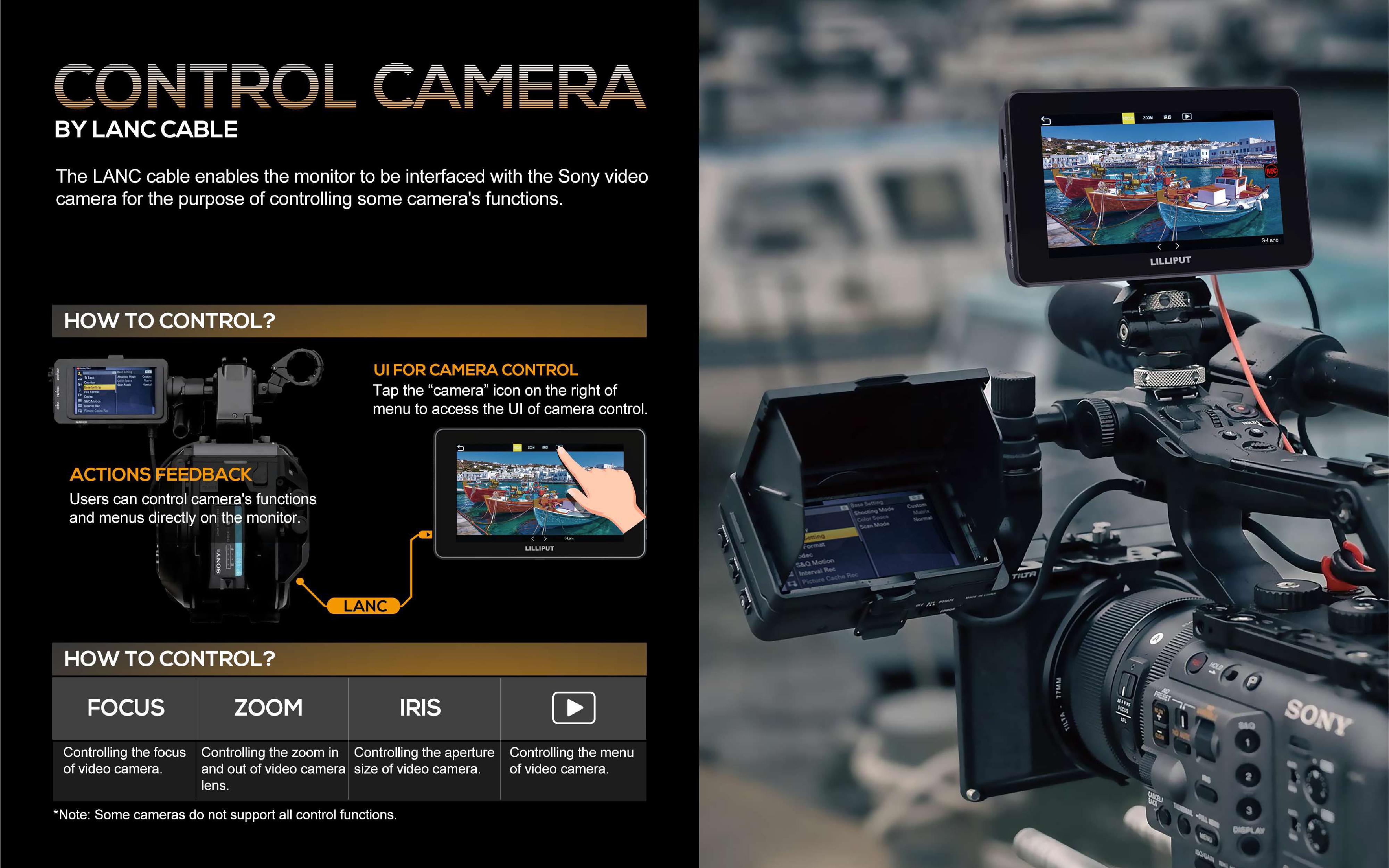

The HT5S monitor is also equipped with a speaker and headphone jack, making it convenient to use while recording. It has multiple image control functions, such as waveform, histogram, pixel zoom, level meter, peaking, false color, and H/V delay, which allow you to fine-tune your image display preferences. Additionally, it features Sony LANC Control with the included LANC cable, allowing you to control focus, iris, and zoom on select Sony cameras.

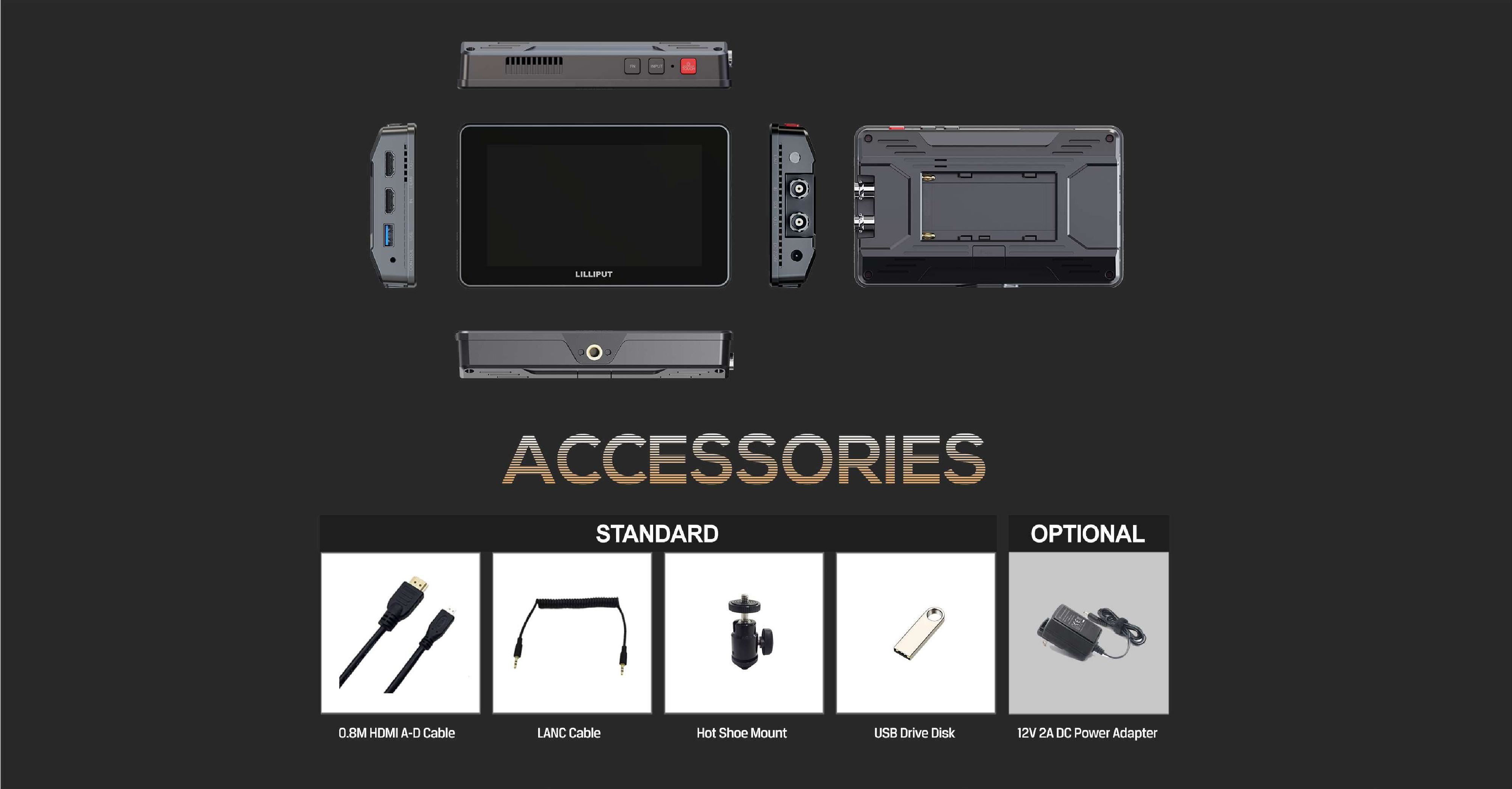

This touchscreen monitor responds quickly to commands, enabling you to easily adjust camera, display, and setting functions. It also has an auto-dimming function, making it easy to see the screen even in bright sunlight. The monitor can be powered using a single Sony L-series battery or a 12V power supply, both available separately. The HT5S even includes a ball head shoe mount adapter, HDMI to micro-HDMI cable, Sony LANC cable, and USB-A disk drive in the box.
Overall, the Lilliput HT5S is an exceptional choice for anyone looking for an on-camera monitor with a range of advanced features, including ultrabright outdoor viewing, touchscreen control, Sony LANC control, HDR and 3D LUT support, and HDMI and 3G-SDI input/output options.
