Now Shipping! More 8K HDMI Distribution Amplifiers Added to Lineup

Posted on 04 November 2024



Now Shipping

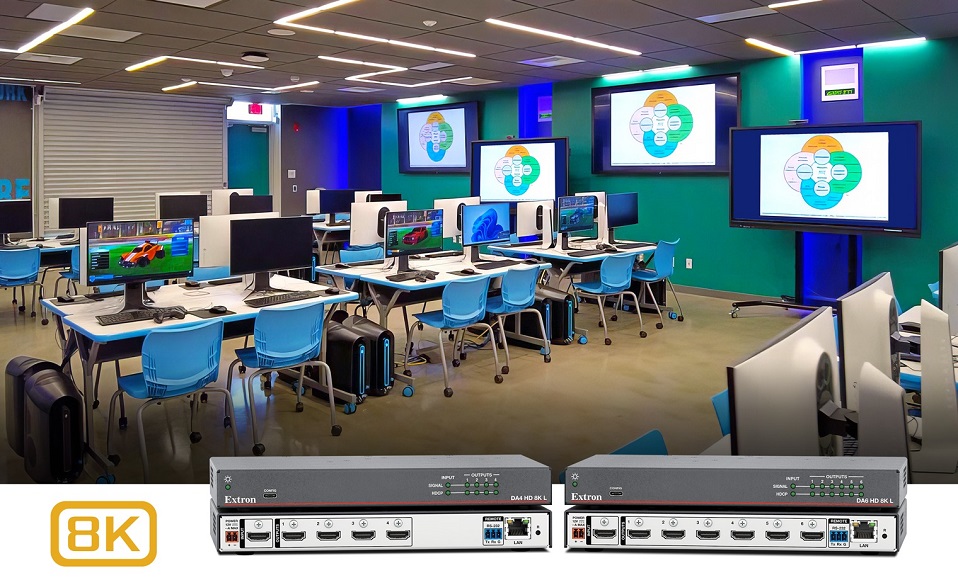

DA4 HD 8K L & DA6 HD 8K L

Now available are the additional four output and six output models that expand our family of 8K HDMI distribution amplifiers. The DA4 HD 8K L and DA6 HD 8K L join the popular DA2 HD 8K L to provide a wider range of design options when you need to distribute the very highest resolutions to multiple destinations. These HDCP 2.3-compliant distribution amplifiers for HDMI 2.1 support resolutions up to 8K/60, including 5K applications such as Microsoft® Teams® 21:9 in Front Row installations. Each distribution amplifier supports data rates up to 40.1 Gbps, HDR, Deep Color up to 12 bits, 3D, and HD lossless audio formats. They also feature CEC capability to streamline operation. Packed with even more features and capabilities, the DA HD 8K L distribution amplifiers are ideal for a wide variety of applications, from presentation spaces to esports arenas, providing reliable distribution of a high data rate HDMI source signal to multiple displays.

Key Features

• Supports computer and video resolutions up to 8K/60
• Supported HDMI 2.1 specification features include data rates up to 40.1 Gbps, HDR, Deep Color up to 12 bits, 3D, HD lossless audio formats, and CEC control
• HDCP 2.3 compliant
  • EDID Minder Plus automatically manages EDID communication between connected devices
  • Key Minder continuously verifies HDCP compliance
  • Selectable output muting for video, audio, and sync in any combination
  • Supports HDR video
• Automatic input cable equalization
  • Provides +5 VDC, 250 mA power on each output for external peripheral devices
  • Ethernet monitoring and control
  • Compact 1” (2.5 cm) high metal enclosures



The DA2 HD 8K L, DA4 HD 8K L, and DA6 HD 8K L are shipping.

DA HD 8K L Series
MODEL	VERSION DESCRIPTION	PART #
DA2 HD 8K L	Two Output 8K HDMI DA	PART # 60-1870-01
DA4 HD 8K L	Four Output 8K HDMI DA	60-1871-01
DA6 HD 8K L	Six Output 8K HDMI DA	PART # 60-1872-01



Feel free to email or call us to purchase this Product.
