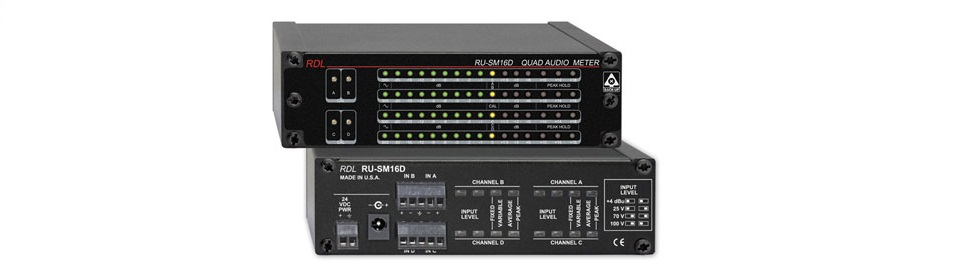

RDL RACK-UP Series 4 Channel Audio Meter RU-SM16D

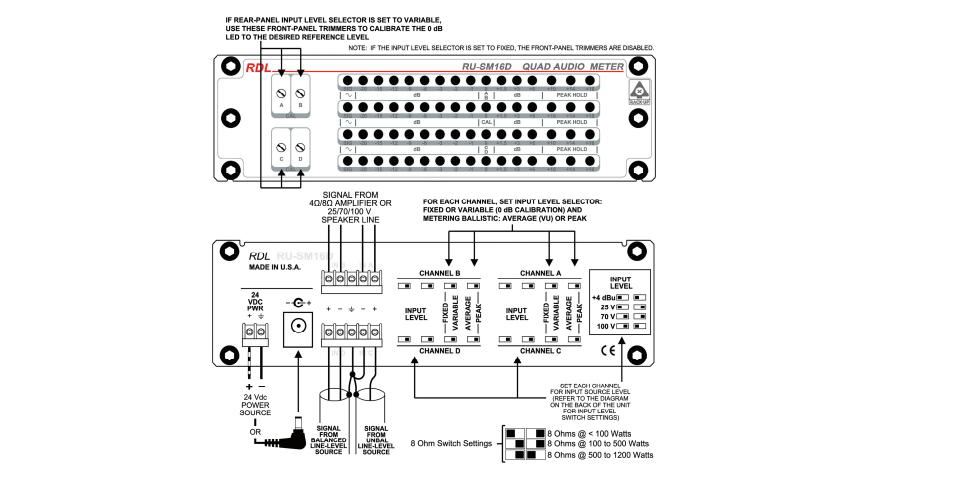

The RU-SM16D four channel Audio Meter is the ideal choice in most applications where the metering of multiple audio levels is to be designed into a system or added to existing equipment. The RU-SM16D has four separate inputs. Each input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines (25 V, 70 V or 100 V). All connections are made using detachable terminal blocks.
Key Features
- Precision Audio Level Metering
- Digital 16 LED String Display Indication
- Four Mono Meters or Dual Stereo Metering
- Line-Level, Speaker-Level or 25/70/100 V Audio Input
- Selectable Fixed or Variable Calibration
- Individual Channel Calibration Controls
- Selectable Peak or Average Metering
- Peak-Hold Display for +10, +14, +18 dB
The RU-SM16D uses bright LEDs for good visibility. Each input has a label area for identification of the source or function being metered.
The flexible range of input signals, vibrant visibility, professional appearance, accuracy and mounting possibilities of the RU-SM16D make it ideally suited to commercial, professional, studio and broadcast applications. Combine the RU-SM16D with other RDL products as part of an integrated, high quality system.
