All new D SERIES J3 is an audio input accessory from Radio Design Labs offered in Decora plates. The D SERIES panels are finished in RDL’s grey/white, black or in stainless steel. These input panels are intended for installations demanding the ultimate in professional styling combined with durability, longevity and value. The D SERIES- J3 fit directly into RDL back boxes (WB-1U, WB-2U) to match cabinets. The back of each panel assembly is finished with a metal enclosure clearly labelled for easy installation
D-J3M

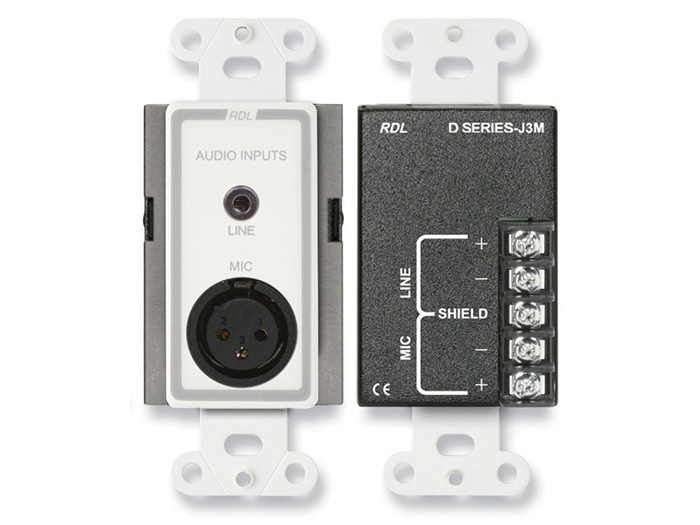

Mic/Line Input Assembly – A complete audio input panel assembly – White
DS-J3M

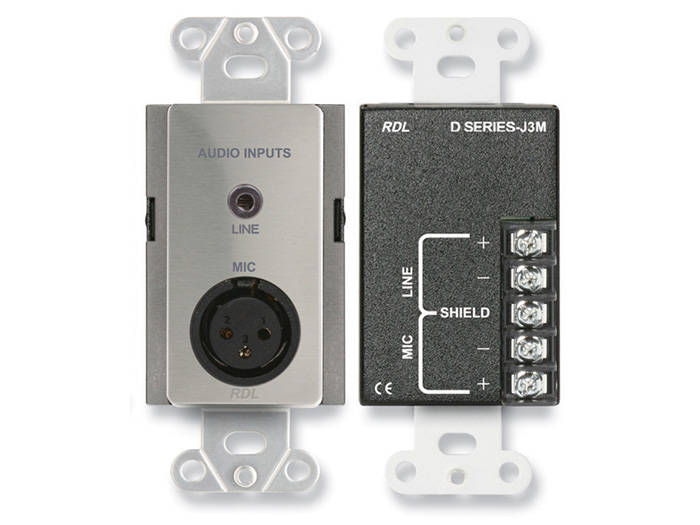

Mic/Line Input Assembly – A complete audio input panel assembly – Steel
DB-J3M

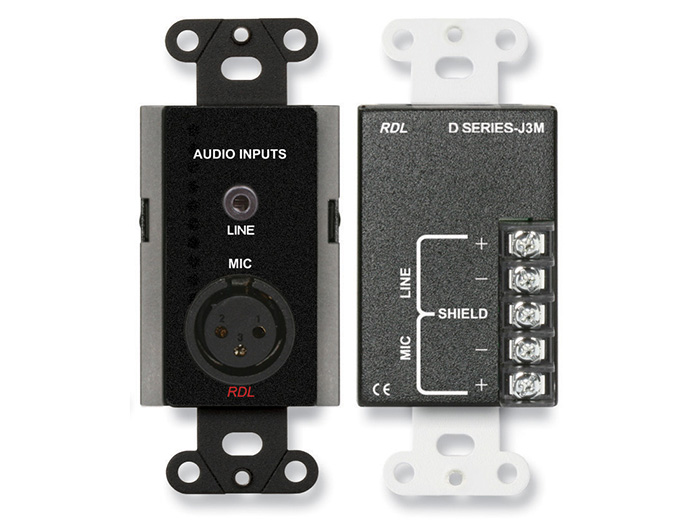

Mic/Line Input Assembly – A complete audio input panel assembly – Black
D-TPS2AM

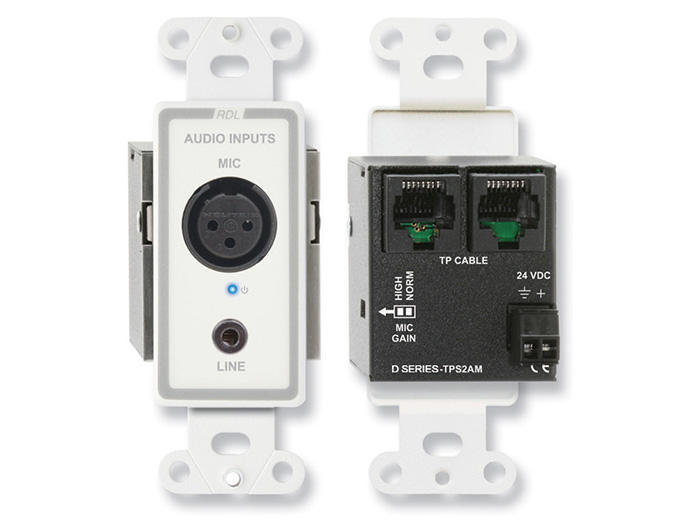

Active Two-Pair Sender – Twisted Pair Format-A – XLR microphones & Stereo Mini-jack in – White
DS-TPS2AM
Active Two-Pair Sender – Twisted Pair Format-A – XLR microphones & Stereo Mini-jack in – Steel
DB-TPS2AM

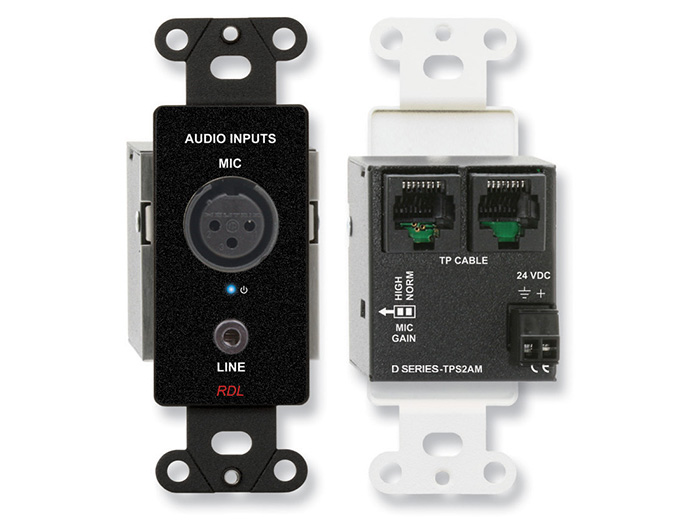

Active Two-Pair Sender – Twisted Pair Format-A – XLR microphones & Stereo Mini-jack in – Black
RDL D Series
The D SERIES is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer-level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labelled for easy installation.
The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
