Lilliput Ultra High 1500 Nits Brightness Touch On-Camera Control Monitor
Posted on 11 April 2023
The Lilliput HT10S is a precision on-camera monitor that has been designed to meet the needs of professional photographers and filmmakers. This monitor boasts an amazing 1500 nits ultra-high brightness and a touch LCD screen, which is capable of controlling video camera menus on set. Specifically, the HT10S has been designed for outdoor video and film shooting, where a high level of brightness is necessary to overcome the glare of sunlight.

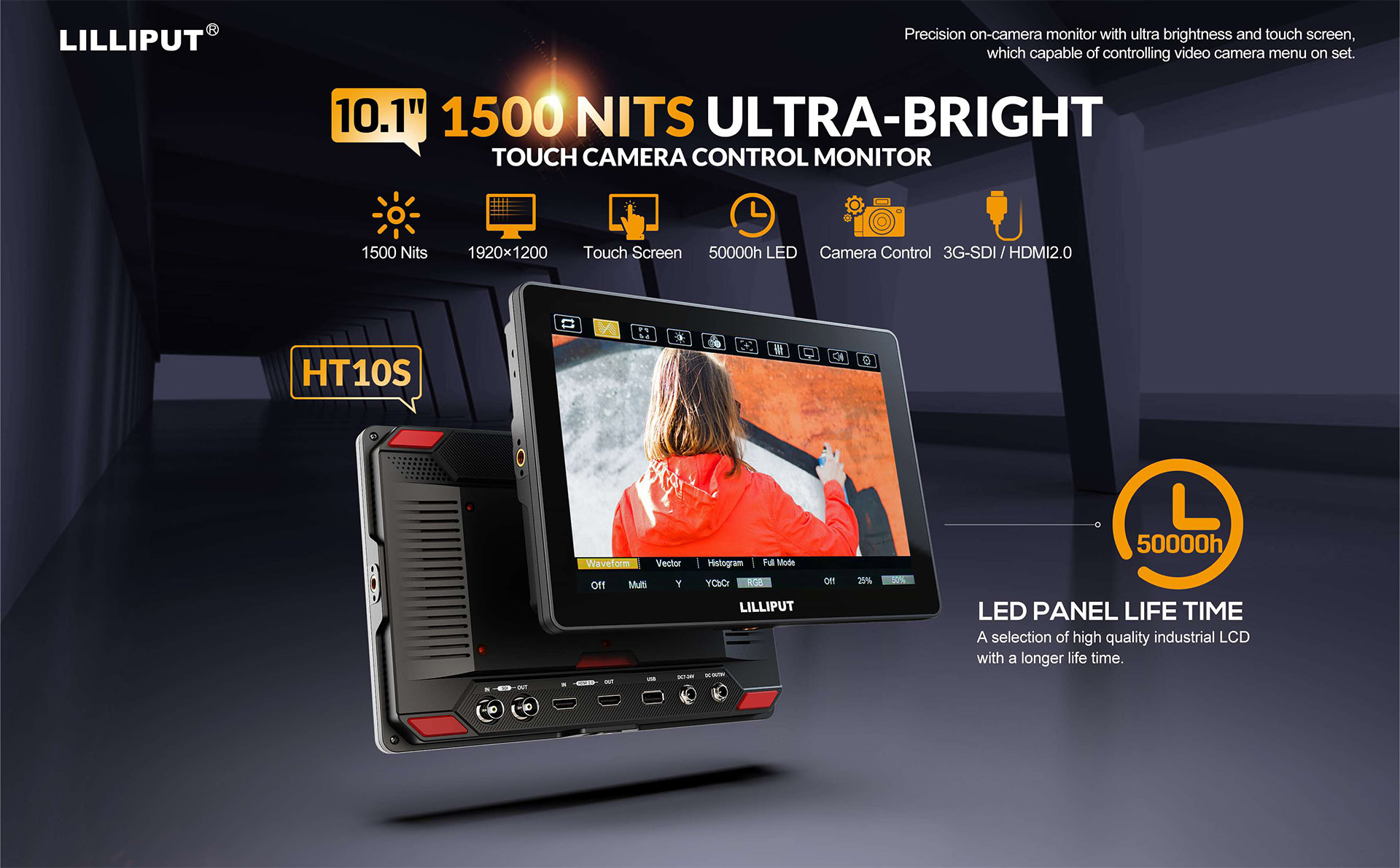

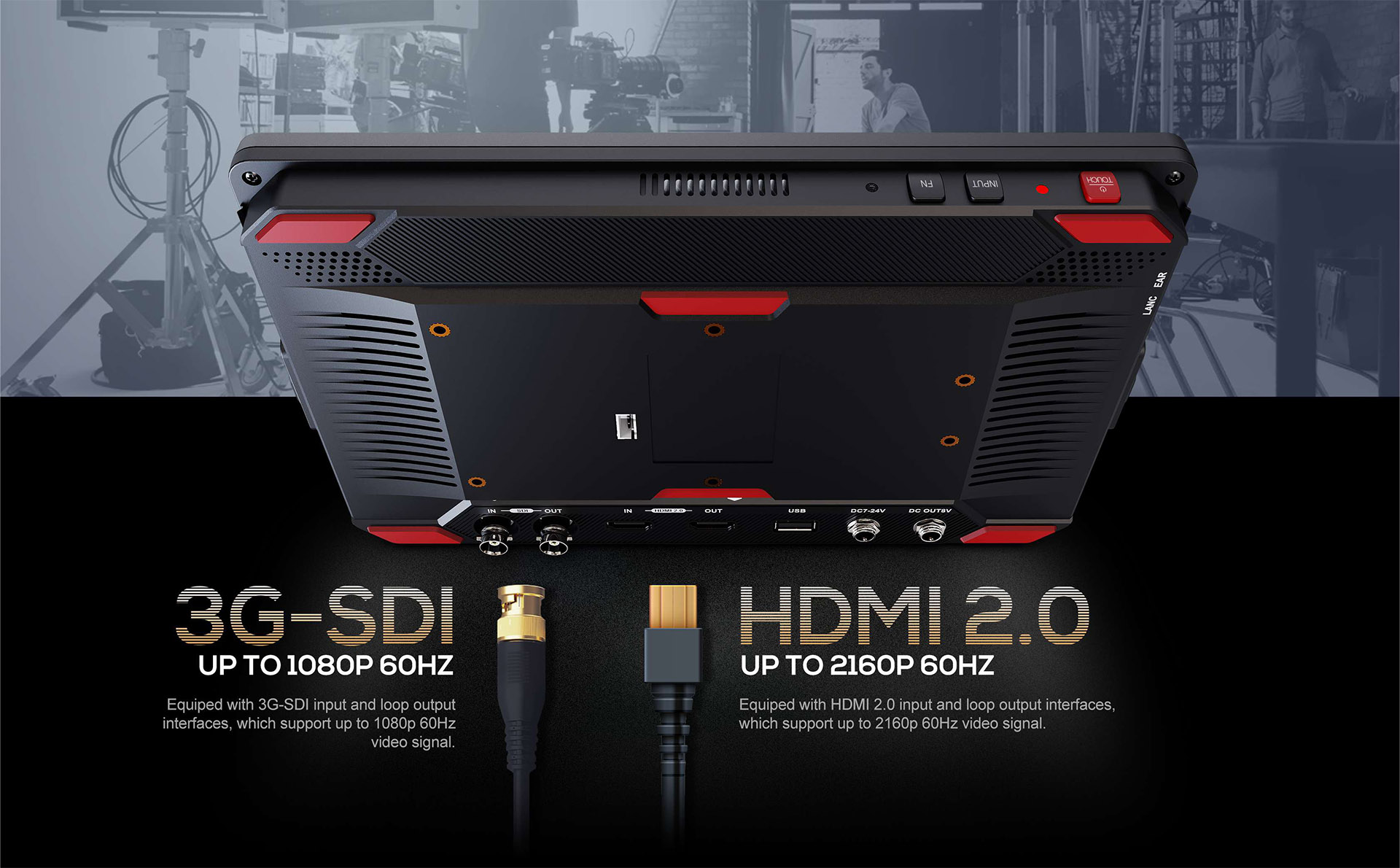

One of the key features of the HT10S is its 10.1 inch, 1920×1200 display with 1500nit brightness. This means that it is capable of producing a high level of brightness, making it easier to view your footage even in bright sunlight. The monitor also comes with both 3G-SDI and HDMI 2.0 inputs and outputs, providing you with a range of options for connecting your camera.

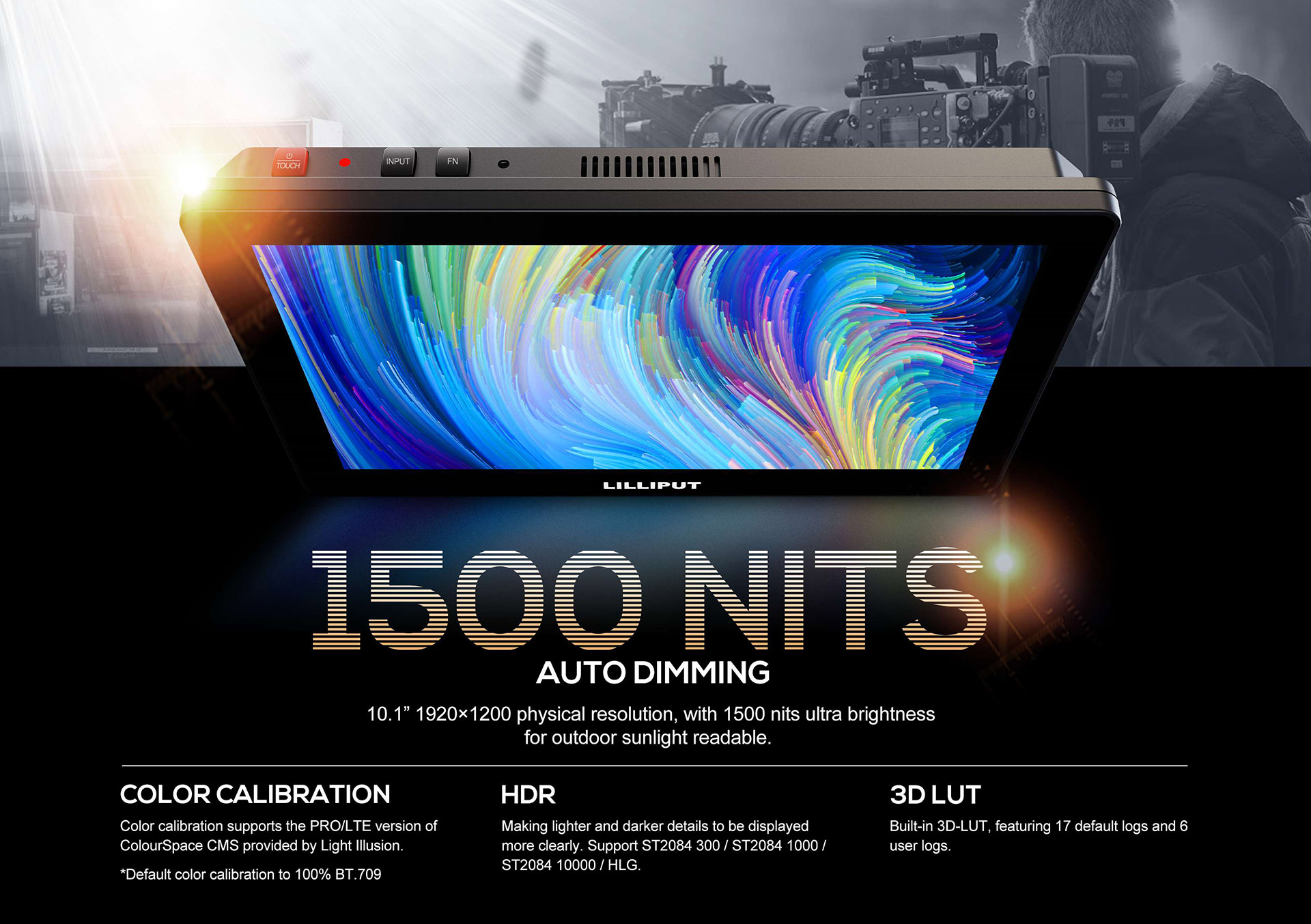

Another great feature of the HT10S is its auto-dimming capability. This means that the monitor will adjust its brightness based on the ambient light conditions, ensuring that the image remains visible and clear at all times. Additionally, the monitor has a long LED life of up to 50,000 hours, which means that you can rely on it for many years to come.

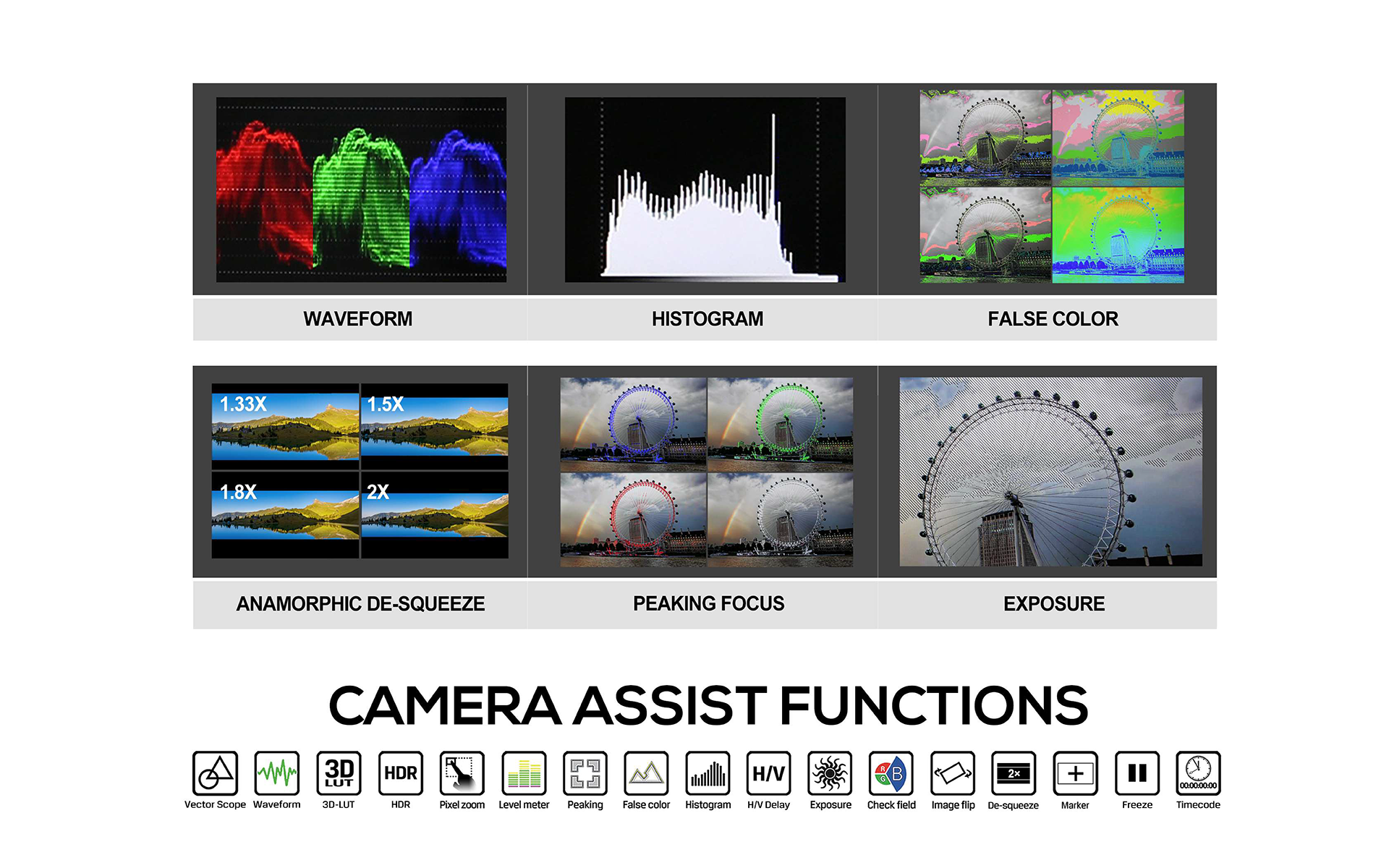

The HT10S also includes HDR 3D-LUT and touch screen capabilities. HDR 3D-LUT support allows for more nuanced imaging, creating highly detailed light and dark shades for a more realistic image. The touch screen feature allows you to quickly and easily adjust camera and display settings, streamlining your workflow on set.

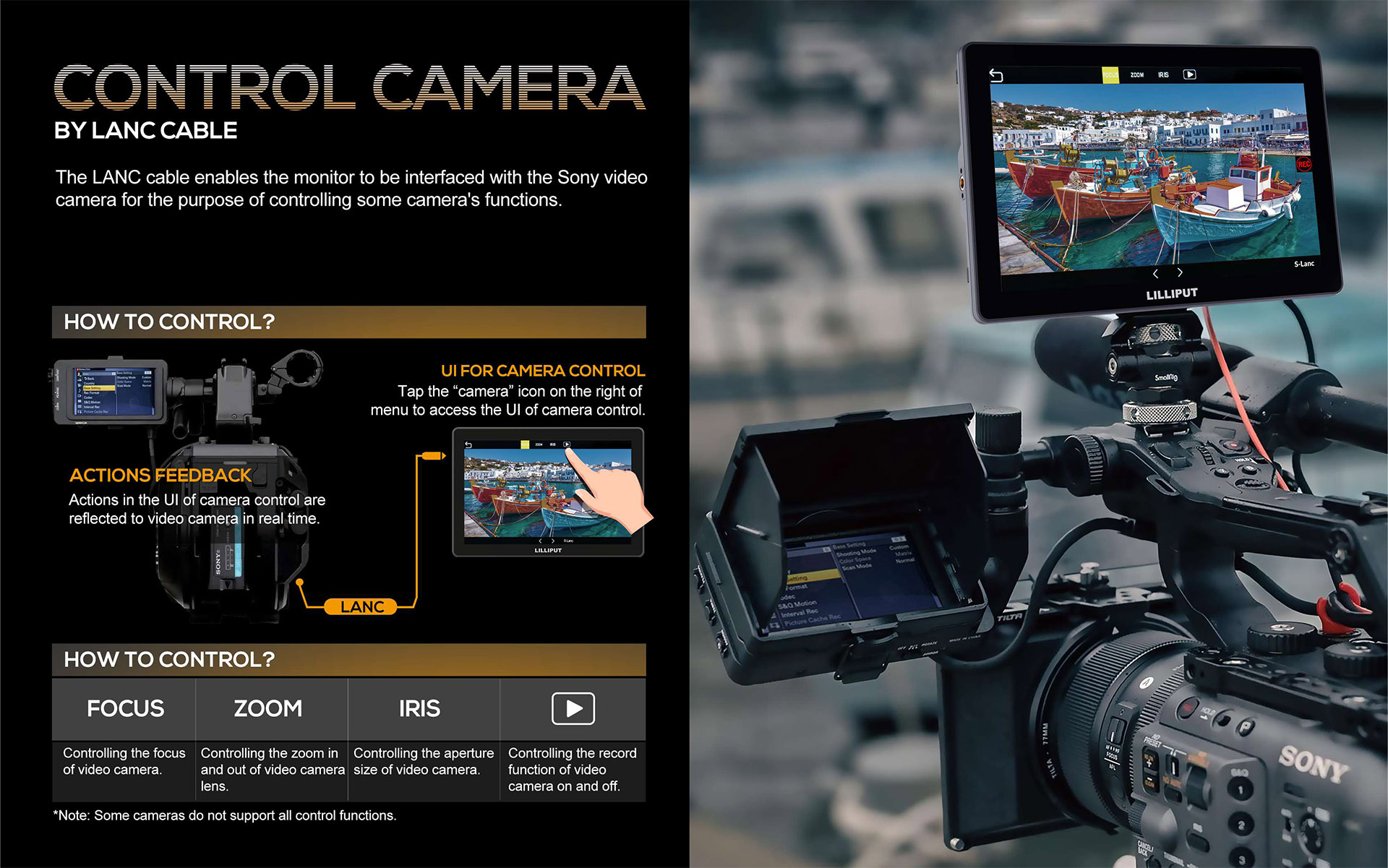

The HT10S also comes with a V-lock battery plate, providing you with a reliable power source that is easy to swap out when needed. This battery plate is compatible with a range of different V-lock batteries, giving you flexibility in your choice of power source. Additionally, the HT10S has camera control capabilities, allowing you to control certain camera functions directly from the monitor.
Overall, the Lilliput HT10S is an excellent choice for anyone looking for a precision on-camera monitor that can meet the demands of professional photography and filmmaking. Its 1500 nits ultra-high brightness, auto-dimming capability, HDR 3D-LUT support, touch screen, V-lock battery plate, and camera control capabilities make it an exceptional tool for outdoor shooting and beyond.
| DISPLAY | Touch Screen | Capacitive touch |
| Panel | 10.1” LCD | |
| Physical Resolution | 1920×1200 | |
| Aspect Ratio | 16:10 | |
| Brightness | 1500 nit | |
| Contrast | 1000:1 | |
| Viewing Angle | 170°/ 170°(H/V) | |
| LED Panel Life Time | 50000h | |
| Color Space | 125% BT.709 / 92.5% DCI-P3 | |
| HDR Supported | HLG; ST2084 300/1000/10000 | |
| SIGNAL INPUT | SDI | 1×3G-SDI |
| HDMI | 1×HDMI 2.0 | |
| SIGNAL LOOP OUTPUT |
SDI | 1×3G-SDI |
| HDMI | 1×HDMI 2.0 | |
| SUPPORT FORMATS |
SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
| AUDIO IN/OUT | HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | |
| Built-in Speakers | 1 | |
| POWER | Input Voltage | DC 7-24V |
| Power Consumption | ≤23W (12V) | |
| ENVIRONMENT | Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C | |
| OTHER | Dimension(LWD) | 251mm × 170mm × 26.5mm |
| Weight | 850g |
