Use Next Gen AV Power Management with Extron Control Systems

We are pleased to introduce the IPL EXP PDU4H control system power expansion interface that provides centralized power management for small to medium sized AV systems. It delivers the ability to control individual AC outputs remotely and allows for aggregate current sensing. The IPL EXP PDU4H is Ethernet enabled and features four AC outputs, four manual control ports, and a relay for additional system support. It is designed to be used with an IPCP Pro xi Series control processor for secure, encrypted power control of attached devices. It can also operate independently using a secure Extron API, enabling seamless integration for specialized applications. The IPL EXP PDU4H is housed in a compact 1U half rack enclosure that offers a broad variety of mounting options.

 AV Power Management

Feature Highlights

Works in three modes of operation for system design flexibility

Secure Platform Device allows for secure, encrypted AV control interface for management from all Extron IPCP Pro xi Series control processors
Independent operation using a secure Extron API allows for compatibility with control systems within a secure Ethernet environment
Four manual control contact closure ports for power management directly from the rear of the control system expansion interface

Supports Worldwide Power Requirements

* Provides four independent 100/240 VAC, 12/10A max, IEC female outlets

Powerful reporting and troubleshooting

* When used with an Extron control system, aggregate current sensing can be used for monitoring power consumption of connected devices

Extra Protection for your powered products

*  Multiple, single stage MOVs provide surge protection allowing for up to 1,750 Joules of protection for attached devices
*  24V relay can be tied to a control system for voltage threshold alarms
*  12A circuit breaker button for over current protection

Power up Sequencing

* In the event of power loss and restart, power outlet receptacles can be powered on sequentially with a user-configurable delay between each one preventing a power overload spike and a blown fuse or tripped circuit breaker from occurring.

Power Management2

Key Features
  • Provides remote power management for connected AV devices
  • Four independent 100/240 VAC, 12/10A max IEC female outlets for worldwide power compatibility
  • Aggregate current sensing allows monitoring power consumptions for reporting and troubleshooting purposes
  • Secure Platform Device provides an encrypted AV control interface for management from all Extron IPCP Pro xi Series control processors
  • Can operate independently using a secure Extron API, enabling seamless integration for specialized applications
  • Four manual control contact closure ports provide compatibility with control systems via simple contact closure inputs
  • Single 24V relay provides voltage threshold alarms when tied to a control system
  • Optional one foot IEC male to Edison female Cable Adapter Kit

The IPL EXP PDU4H will be available December 2021. Email Lloyd@localhost for more information.

IPL EXP PDU4H
MODEL VERSION DESCRIPTION PART #
IPL EXP PDU4H Four IEC Outlets 60-1956-01
IPL EXP PDU4H Four IEC Outlets with Edison Cable Kit 60-1956-02
IEC-Edison Cable Kit Four, One-Foot, IEC to Edison Adapters 101-034-01

How Bluetooth Tech Can Improve the Indoor Guest Experience

The D SERIES-BT1A modules are Bluetooth audio receiving modules compatible with RDL® Format-A twisted pair receivers. When paired with a compatible Bluetooth enabled device, the module receives stereo audio from the Bluetooth source. The stereo signal is sent through two Format-A pairs to any RDL Format-A receiver. A stereo/mono switch set by the installer permits summed mono audio to be sent over one switch-selected pair to the Format-A receiver.

Bluetooth

More info

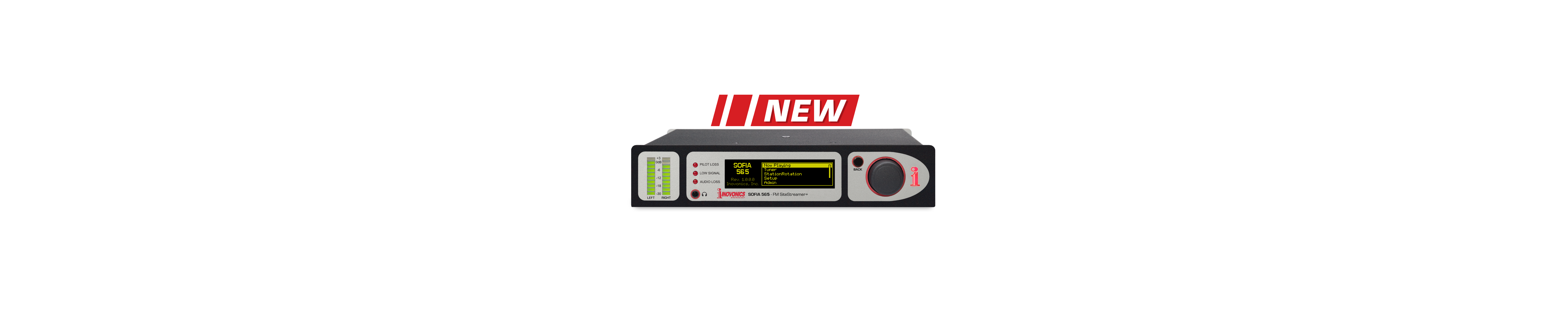

Introducing the new SOFIA 565 FM SiteStreamer+

The SOFIA 565 FM SiteStreamer+™ is the latest addition to our elite series of remote monitors with advanced features for critical situations.

The SOFIA 565 provides analog, AES3-digital and AoIP-streaming audio outputs. The Web Interface enables remote FM/RDS tuning, streamed audio, source switching, alarms, and much more. Up to 10-listeners can remotely monitor the audio stream.  Shipping in January

Features

Fulltime off-air program audio is available simultaneously as L/R-analog, AES3-digital and Dante®-based AES67 AoIP streaming, all with adjustable levels, plus a multi-listener Internet IP stream and front-panel headphone jack.

  • Install the SiteStreamer+ within the reception contour of your station and monitor off-air analog FM via the Web from anywhere in the world.
  • The SOFIA 565 Internet-listening stream supports up to 10 listeners at once.
  • Front-panel alarms and/or rear-panel ‘tallies’ indicate Audio Loss, Low Signal, RDS Errors, and FM Reception Loss.
  • The easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options.
  • Gives local and remote readout of all pertinent FM/RDS data.
  • Enhanced alarm logging includes the duration of each alarm, and there is virtually no limit to the number of alarms that can be logged.
  • The built-in BandScanner displays a spectrum plot of the entire FM band (or a user-selected portion).
  • The half-rack package features an OLED hi-res graphic display, wide-range LED level meters and individual alarm LEDs with rear-panel tallies.
  • GPOs may be user-assigned to specific alarm functions.
  • SNMP utility is fully supported.
  • Real-Time Clock has a battery backup.

 Click here for product brochure
